12 Volt Led Light Strips
- Custom high quality 12v led light strips on your own application
- According to your order request
- Custom-made CCT of the led light strips
- Over 10 years led light tape manufacturing experience
Lightstec 12 Volt Led Light Strips
- Use for indoor and outdoor application
- Can use with dimmable power supply
- 12V can use for car illumination
- Reliable led chips material from brand company
Warm white 12 volt led light strip
Cool white 12 volt led light strip
Nature white 12 volt led light strip
Green 12 volt led light strip
Yellow 12 volt led light strip
Red 12 volt led light strip
Blue 12 volt led light strip
CRI80 12 volt led light strip
ROHS 12 volt led light strip
Silicon tube 12 volt led light strip
Custom 12 volt led light strip

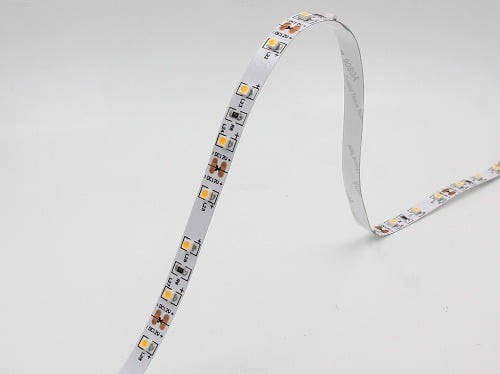

SMD3528 12 volt led light strip

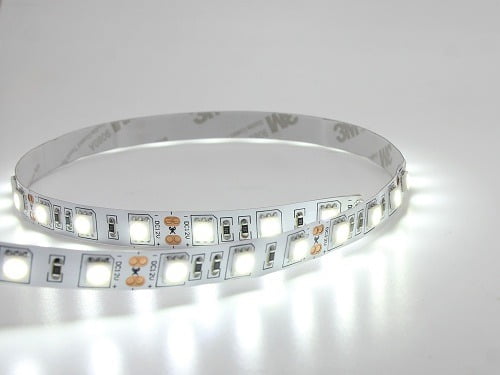

SMD5050 12 volt led light strip
SMD2835 12 volt led light strip
Control Your Led Light Strips Quality in Factory!
1，IQC
All material arrived in factory , not matter pcb , led , ic ,resistance ,aluminum profile ,cables, are need QC check . all the items need meet the requirement.
2, CCT check
All led need test the color temperature ,we need to check the brightness , color temperature ,Color Rendering Index.We need to make sure client buy the products color the same as last order .
3, Dehumidification
All led need dehumidification before SMT.65℃*8hours .This ensure the led dry.
4.SMT process
Producing LED ,IC,resistance onto the surface of the PCB. We are using the high speed automate machine . Ensure all the components are in the right place .
5. Reflow soldering
After the SMT process , the led and PCB is join solder paste. This need go thought reflow soldering machine and in approx 220-250℃。 Then the solder paste thaw and bonding together.
6 .Inspection
Our QC dept inspect 100% check of the strip light to ensure there are no defect LED and color shift LED.
7.Soldering PCB
Our automate soldering machine will soldered the 0.5M pcb 10pcs to 5meter . According to customer request. Cable is soldering by hand. Machine soldering ensure the PCB soldering quality stabilized.
8. Clean PCB surface
Once soldering completed, the strip PCB will be cleaned by alcohol.
9.Ageing test
All the led products need lighting test for 8 hours, ensure each LED runs in good condition. In this process , we can know weather led working well? Led in the right color temperature ? Driver working well ? This is very important ..
10.Waterproof
IP55/65 (defend moisture) Silicon glue onto the surface of the PCB . IP65(defend raining) using silicon tube for the waterproof . IP67( short time using under water )using silicon glue injection into the silicon tube .
11. 3M tape
All our led strip will be pasted with 9080A 3M tape, to ensure easy installation for end customer.
12. Final quality control
Our QC will check on every strip reel, to ensure consistent light color of the strip, as well as good appearance.
Questions You May Ask About Our Led Light Strips
As a led light factory,we normally stock material,just like PCB,LED,resistance,3M tape.
Different client have their own request.Different color temperature,different wattage per meter,different waterproof version.
For samples,we can arrange within 1weeks.And for the bulk orders,we need 1 to 3 weeks.
12 Volt Led Light Strip Ultimate Using Guide
Led light strips are used all around us in many place.Industrial lighting,commercial lighting and residential lighting.Flexible Led light strips is popular in many architects and lighting designers.Because of lighting color options,lighting efficiency and brightness.Led strips are easy install.It is flexibility,small size and many kinds of accessories.It is one of the most popular led strip lights for home DIY lighting.A home owner can design lighting like a professional with this led strips.
This led light strip using guide will help newcomers and experts on finding the best led light strips for the job and how to overcoming installation problems when they are using the strips light.
Led light strips:What makes them so easy to use?
Led light strips,also know as led strip light,led tape light,led ribbon lights.It is assemble by SMD led,PCB board,resistance,3M tape.Normally come with 5meter/reel.Led light strips have many features that make them easy to use in many applications.
12V LED Light Strip Applications:
- Kitchen Cabinets and Shelves(kick board lighting,under cabinet,nightlight)
- Bathroom Counters(kickboards and nightlights)
- Closets/Attics(places with insufficient lighting or places that are hard to light)
- Movie Theater/Game Room
- Vehicles(interior and exterior lighting)
- Weddings/Events
Easy to cut
Cutting led light strips is very easy.DC12V led strip light is 3 led unit.DC24V led strip light is 6 led unit.It have a cut lines between each unit.And each cutting point have solder pads there.After cutting the strip light,we can use fast connector connect the strip light or soldering the strip light with wires.Then you can power the strip light easy.Then you can cut any size of the strip light to fit request of the applications at home.
Led strip light with 3M tape
Most of the led light strips have 3M tape backside.That makes the strip light easy mounting on the wall.Some of the waterproof version led tape have clips for install.That will fix the led tape stronger.
Waterproof and Non-Waterproof

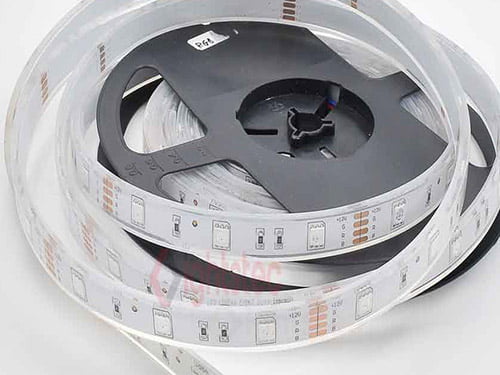

Led light strips have waterproof and non-waterproof version.For indoor using,non-waterproof version using most.Waterproof version have IP55(silicon glue in the surface),IP65(silicon tube protect),IP68(silicon injection process).Most of the waterproof version led light tape using where it is easy get wet or raining easy.Just like bathroom,courtyard,swimming pool,etc.
12 volt led light strips
Led light strips have 12 volt and 24 volt input version.We have to use a AC/DC transformer to power the strip light.Low volt input is safe for people using.Led power supply have many different option.It can dimming control control the led strip light.We also can use battery to power the strip light.The car battery is DC12V.We can use led light strips in cars.
7 Things to Know Before Installing LED Light Strips
Flexible Led light strips are good lighting material for all kinds of lighting projects.But sometimes it is not easy to know how to start.Following guide will give you some ideas that you will know where to begin.
How many led chips per meter?
Led density of an led light strip means how many leds in one meter of the strip light.The more led in one meter of the strip light,the high density led of the light strips.
There are many density of led light strips.Lightstec have 30led/m,60led/m,120led/m,240led/m.Normally,60led/m and 120led/m sales most.
Led Density & Brightness
| Density of LED | Lumen/Meter | Wattage/Mtr | Cuttable | Max.Run |
| 30/Meter | 540/Meter | 5.4 Watts | 10cm | 5mtr |
| 60/Meter | 1080/M | 8 Watts | 5cm | 10mtr |
Lumen is a measurement of brightness.Simply,if the project need more brightness,then you need to use a high lumen output led light strips.
Different projects require certain amount of brightness to achieve their purpose.My advice would be to always go for the brighter option and add a dimmer.Below is a helpful guide on Lumen requirements:
- Accent or Mood Lighting–100-300 Lumens/ft.
- Under Cabinet Lighting–175-360 Lumens/ft.
- Task lighting w/higher distance from source–300-450 Lumens/ft.
- Bedroom,Cove Lighting–180-500 Lumens/ft.
Led light strips color:RGB,Single color,CCT change

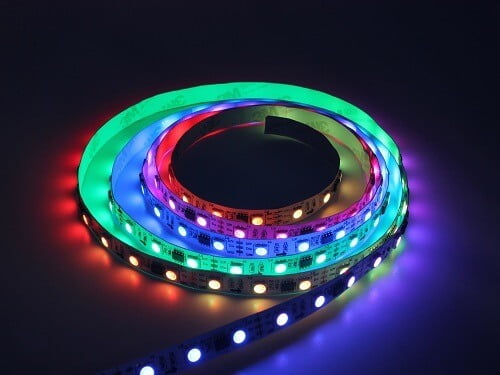

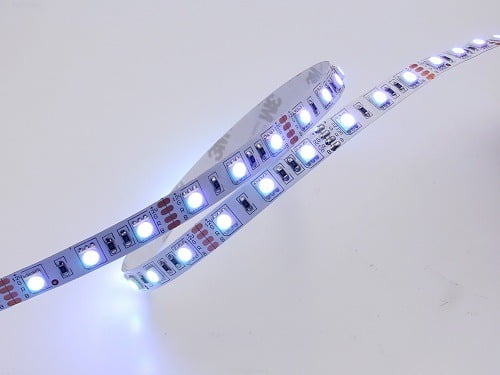

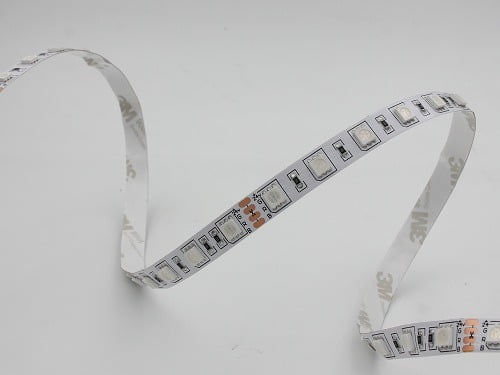

LED strip light color depends on personal preference.RGB LED strips are a good option for those that like some variety and color effects.RGB strip lights are color changing strips that are great for accent lighting all around the home.They use red,green and blue diodes so that they can be mixed to create many different colors.If you are using RGB strips just make sure you use a 3 channel controller from the dimming section of this guide.
The strips light are also available in single colors of:Red,Green,Blue,Yellow and White(1800k,2400k,2700k,3000k,3500k,4000k,5000k,6500k,8500K CCT).
CCT stands for Correlated Color Temperature which is the color temperature of light,measured in degrees Kelvin(K).The temperature rating of an LED strip directly affects what the light looks like.Look at the photos below for reference.Warm White is what we call 3000K which gives off an orange or yellowish appearance.As we increase degrees Kelvin the color changes from yellow to off white to natural white and then to bluish white which is known as Cool White.
How to choose CCT at Home?
Warm White creates an inviting,cozy area.It is generally used in rooms where everyone gathers to visit or relax(living rooms,bedrooms,dining rooms,etc.)
Natural White creates a natural,daylight effect.This is the best selling strip as it mimics natural light and is comfortably used anywhere in the home.This is our most popular strip for under cabinet LED lighting.
Cool White complements contemporary and modern styles,casting a bright,fresh glow.Cool white is great for task lighting as it is a brighter,more focused light.The bright,cool colors are used the most in bathrooms,kitchens and work spaces.
Length of led light strips
You have to count how many meter led strip light you want in the project.That will give you an idea of the cost of the project.Normally,the strip light comes in 5meter/reel.You can ask if the supplier can custom made length for you.For some big lighting project,factory can customization led light strips.You can order different length in different quantity.
LED Strip Wattage and Power Supply
Led strips light have DC12V and DC24V version.Normally it have a mark in the PCB board.Then you cannot make a mistake.
And in the label you can know how many wattage per meter of the strips.Then we can easy to count the wattage of the led power supply.
For example,LT-2835WW120R-W24.DC24V,15W/M.
In a project,we need to use 10meter,then total wattage is 15W/M*10meter=150W.Normally we need the power supply bigger 20% of the total wattage.Then means 150w*1.2=180w.We can choose a led driver output DC24V and wattage bigger than 180w.
LED Power Supply Options:
- Plug-in Adapter–Plug straight into your wall to power your LED strip lights.
- Hardwire Power Supplies–Directly wire in between your line voltage wiring and your LED Strips.
- Dimmable Power Supply–Triac,0-10v dimmable and Dali dimmable power supply
- Batteries–DC12V battery or DC3V battery
Wiring and Connecting LED Strips
We suggest using strip light 5meter in series for DC12V and 10meter in series for DC24V.In this way, the brightness from the beginning to the end will not have big different.
When we are using led light strip in big project,we can connect the strips in parallel.First we connect a wire from the power supply.Second,we connect all the strip light to that wire.First of all,you need to count the total wattage of the strip light.Then the wattage of the power supply need 20% bigger than the total wattage of the strip lights.
How to connect led light strips without soldering?
From our experience,soldering is the best way to connect led light strips.But in some place,we don’t have soldering iron or we just using once.So does it any way to connect led strips without soldering?
Lightstec have fast connectors for connect led strips.We have 8mm,10mm and 12mm connector for different size PCB.And we have connector for single color led strips and RGB connector for RGB change light strips.We also have connector with wires,then you can connect the strip light to the power supply.
Dimming LED Strip Lights
Led light strips are dimmable.There are many ways can dim the strips.
We can use dimmable power supply:
Triac dimmable power supply
0-10 dimmable power supply
DALI dimmable power supply
We can use dimmer between strip light and normally power supply.
In this post you can check how to dim a led light strips.
Mounting LED Light Strips
The strip light have 3M tape backside.It is helpful for mounting.But it is not well for some surface.We have solutions as following.
- Silicon Glue-That is effect for most of the mounting surface
- Led Mounting clips-Better for waterproof version strips
- Mounting profile-we have types of led aluminum profile for strip light
Conclusion:
There are lots of information in this post.We want you after reading this post then you know more about strips light.We are happy to hear from you if you have any request of led light strips.
