12 Volt Led Light Strips
- Custom high quality 12v led light strips on your own application
- According to your order request
- Custom-made CCT of the led light strips
- Over 10 years led light tape manufacturing experience

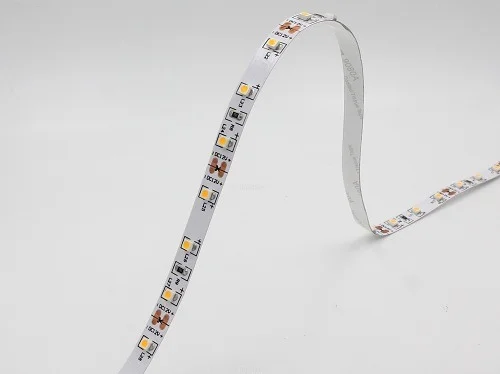

Lightstec 12 Volt Led Light Strips
- Use for indoor and outdoor application
- Can use with dimmable power supply
- 12V can use for car illumination
- Matériau de puces LED fiable de la société de marque
Warm white 12 volt led light strip
Cool white 12 volt led light strip
Nature white 12 volt led light strip
Green 12 volt led light strip
Yellow 12 volt led light strip
Red 12 volt led light strip

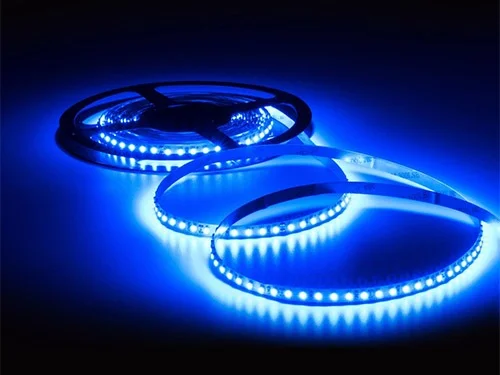

Blue 12 volt led light strip
CRI80 12 volt led light strip
ROHS 12 volt led light strip
Silicon tube 12 volt led light strip
Custom 12 volt led light strip
SMD3528 12 volt led light strip

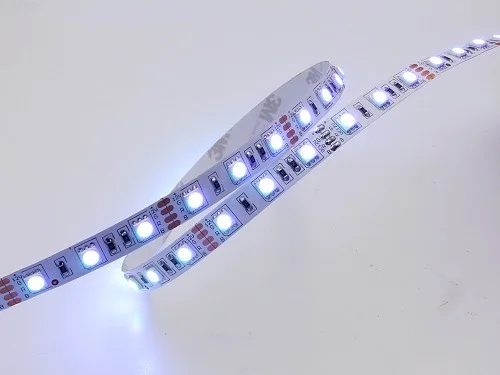

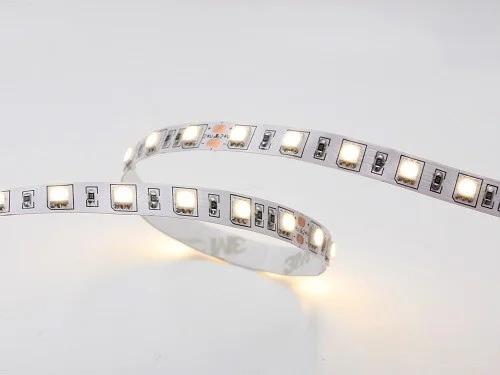

SMD5050 12 volt led light strip

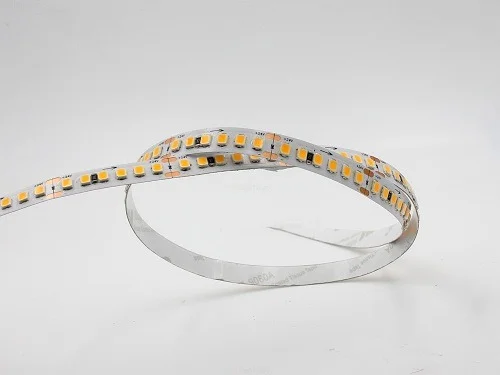

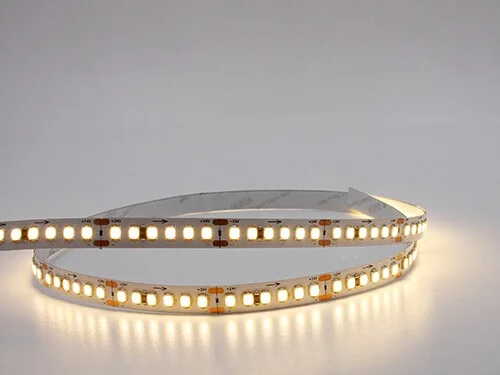

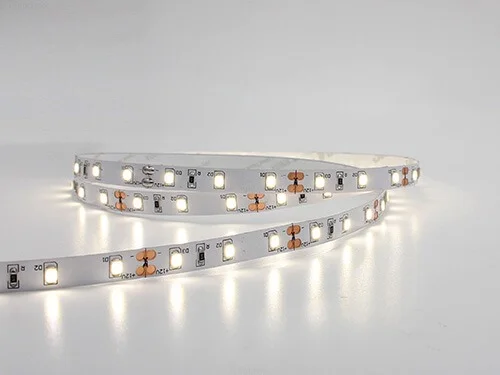

SMD2835 12 volt led light strip
Contrôlez la qualité de vos bandes lumineuses LED en usine !
1，CIQ
Tout le matériel est arrivé en usine, peu importe circuit imprimé , led, ic, résistance, profil en aluminium, câbles, nécessitent un contrôle qualité. tous les articles doivent répondre à l'exigence.
2, vérification CCT
Toutes les led doivent tester le température de couleur , nous devons vérifier la luminosité, la température de couleur, l'indice de rendu des couleurs. Nous devons nous assurer que le client achète les produits de la même couleur que la dernière commande.
3, déshumidification
Toutes les led ont besoin d'être déshumidifiées avant SMT.65 ℃ * 8 heures. Cela garantit que la led est sèche.
processus 4.SMT
Production de LED, IC, résistance sur la surface du PCB. Nous utilisons la machine automatisée à grande vitesse. Assurez-vous que tous les composants sont au bon endroit.
5. Soudage par refusion
Après le processus SMT, la led et le PCB sont joints à la pâte à souder. Cela nécessite une machine à souder par refusion et dans environ 220-250 ℃。 Ensuite, la pâte à souder décongèle et se lie.
6. Contrôle
Notre département QC inspecte 100% de la bande lumineuse pour s'assurer qu'il n'y a pas de LED défectueuse et de LED de changement de couleur.
7. Circuit imprimé à souder
Notre machine à souder automatique soudera le pcb 0.5M 10pcs à 5 mètres. Selon la demande du client. Le câble est soudé à la main. La soudure à la machine assure la stabilisation de la qualité de la soudure PCB.
8. Nettoyer la surface du circuit imprimé
Une fois la soudure terminée, la bande PCB sera nettoyée à l'alcool.
9. Test de vieillissement
Tous les produits à LED nécessitent un test d'éclairage pendant 8 heures, assurez-vous que chaque LED fonctionne en bon état. Dans ce processus, nous pouvons savoir que la météo a bien fonctionné ? Led à la bonne température de couleur ? Le pilote fonctionne bien ? C'est très important ..
10. Étanche
IP55/65 (défendre l'humidité) Colle silicone sur la surface du PCB. IP65 (défendre la pluie) en utilisant un tube en silicone pour l'étanchéité. IP67 (courte durée d'utilisation sous l'eau) en utilisant injection de colle silicone dans le tube en silicone.
11. Bande 3M
Toute notre bande led sera collée avec Ruban 9080A 3M, pour assurer une installation facile pour le client final.
12. Contrôle qualité final
Notre QC vérifiera chaque bobine de bande, pour assurer une couleur claire constante de la bande, ainsi qu'une bonne apparence.
Questions que vous pourriez poser sur nos bandes lumineuses LED
En tant qu'usine d'éclairage à led, nous stockons normalement du matériel, tout comme les PCB, les LED, la résistance, le ruban 3M.
Différents clients ont leur propre demande. Température de couleur différente, puissance différente par mètre, version étanche différente.
Pour les échantillons, nous pouvons organiser dans les 1 semaines. Et pour les commandes groupées, nous avons besoin de 1 à 3 semaines.
Most of our orders are custom made led light strips.
They have different color temperature, different wattage,different label for package,and more.
You have to let us know more about your request detail.Then we can arrange your custom made order.
There are many kinds of led lights strips we can make.

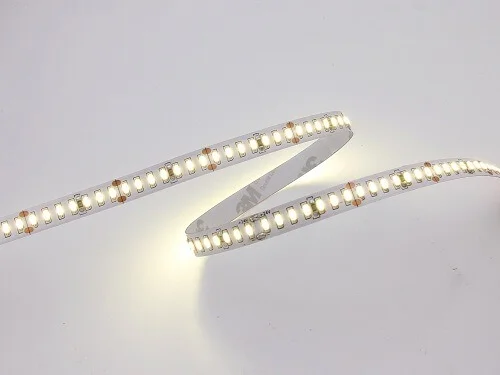

Parmi les types de led, nous avons SMD3528, SMD2835, SMD5050, SMD5630, SMD2216, SMD3014, etc.
À partir de la version étanche, nous fabriquons des bandes lumineuses LED IP20, IP55, IP65, IP67 et IP68.

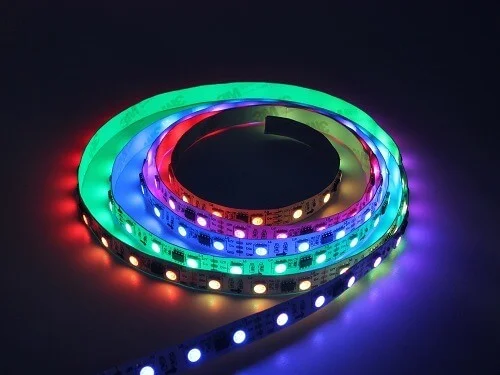

We have addressable led light strips,CCT change led light strips,RGB led light strips,neon flex led light strips.
DC12V led strip light and DC24V led strip light.Which one is the best?
We can buy DC12V led adapter easier than DC24V.
DC12V can use more in Cars.
For project using,DC24V voltage drop less than DC12V.
DC24V led light strips can use longer length then DC12V.
So according your request,you can select dc12v and dc24v LED light strips.
Comme nous le savons, les led ont différents types.
La puissance en watts est plus grande dans un mètre que la luminosité dans un mètre.
Maintenant, la led est d'environ 100lm/w.
Donc, si vous avez besoin d'une bande lumineuse à LED de luminosité, vous devez sélectionner une bande lumineuse à LED de plus grande puissance.
12 Volt Led Light Strip Ultimate Using Guide
Led light strips are used all around us in many place.Industrial lighting,commercial lighting and residential lighting.Flexible Led light strips is popular in many architects and lighting designers.Because of lighting color options,lighting efficiency and brightness.Led strips are easy install.It is flexibility,small size and many kinds of accessories.It is one of the most popular led strip lights for home DIY lighting.A home owner can design lighting like a professional with this led strips.
This led light strip using guide will help newcomers and experts on finding the best led light strips for the job and how to overcoming installation problems when they are using the strips light.
Led light strips:What makes them so easy to use?
Led light strips,also know as led strip light,led tape light,led ribbon lights.It is assemble by SMD led,PCB board,resistance,3M tape.Normally come with 5meter/reel.Led light strips have many features that make them easy to use in many applications.
12V LED Light Strip Applications:
- Kitchen Cabinets and Shelves(kick board lighting,under cabinet,nightlight)
- Bathroom Counters(kickboards and nightlights)
- Closets/Attics(places with insufficient lighting or places that are hard to light)
- Movie Theater/Game Room
- Vehicles(interior and exterior lighting)
- Weddings/Events
Easy to cut
Cutting led light strips is very easy.DC12V led strip light is 3 led unit.DC24V led strip light is 6 led unit.It have a cut lines between each unit.And each cutting point have solder pads there.After cutting the strip light,we can use fast connector connect the strip light or soldering the strip light with wires.Then you can power the strip light easy.Then you can cut any size of the strip light to fit request of the applications at home.
Led strip light with 3M tape
Most of the led light strips have 3M tape backside.That makes the strip light easy mounting on the wall.Some of the waterproof version led tape have clips for install.That will fix the led tape stronger.
Waterproof and Non-Waterproof
Led light strips have waterproof and non-waterproof version.For indoor using,non-waterproof version using most.Waterproof version have IP55(silicon glue in the surface),IP65(silicon tube protect),IP68(silicon injection process).Most of the waterproof version led light tape using where it is easy get wet or raining easy.Just like bathroom,courtyard,swimming pool,etc.
bandes lumineuses led 12 volts
Led light strips have 12 volt and 24 volt input version.We have to use a AC/DC transformer to power the strip light.Low volt input is safe for people using.Led power supply have many different option.It can dimming control control the led strip light.We also can use battery to power the strip light.The car battery is DC12V.We can use led light strips in cars.
7 Things to Know Before Installing LED Light Strips
Flexible Led light strips are good lighting material for all kinds of lighting projects.But sometimes it is not easy to know how to start.Following guide will give you some ideas that you will know where to begin.
How many led chips per meter?
Led density of an led light strip means how many leds in one meter of the strip light.The more led in one meter of the strip light,the high density led of the light strips.
There are many density of led light strips.Lightstec have 30led/m,60led/m,120led/m,240led/m.Normally,60led/m and 120led/m sales most.
Led Density & Brightness
| Density of LED | Lumen/Mètre | Wattage/Mtr | Cuttable | Max.Run |
| 30/Meter | 540/Meter | 5.4 Watts | 10cm | 5mtr |
| 60/Meter | 1080/M | 8 Watts | 5cm | 10mtr |
Lumen is a measurement of brightness.Simply,if the project need more brightness,then you need to use a high lumen output led light strips.
Different projects require certain amount of brightness to achieve their purpose.My advice would be to always go for the brighter option and add a dimmer.Below is a helpful guide on Lumen requirements:
- Accent or Mood Lighting–100-300 Lumens/ft.
- Under Cabinet Lighting–175-360 Lumens/ft.
- Task lighting w/higher distance from source–300-450 Lumens/ft.
- Bedroom,Cove Lighting–180-500 Lumens/ft.
Led light strips color:RGB,Single color,CCT change
LED strip light color depends on personal preference.RGB LED strips are a good option for those that like some variety and color effects.RGB strip lights are color changing strips that are great for accent lighting all around the home.They use red,green and blue diodes so that they can be mixed to create many different colors.If you are using RGB strips just make sure you use a 3 channel controller from the dimming section of this guide.
The strips light are also available in single colors of:Red,Green,Blue,Yellow and White(1800k,2400k,2700k,3000k,3500k,4000k,5000k,6500k,8500K CCT).
CCT stands for Correlated Color Temperature which is the color temperature of light,measured in degrees Kelvin(K).The temperature rating of an LED strip directly affects what the light looks like.Look at the photos below for reference.Warm White is what we call 3000K which gives off an orange or yellowish appearance.As we increase degrees Kelvin the color changes from yellow to off white to natural white and then to bluish white which is known as Cool White.
How to choose CCT at Home?
Warm White creates an inviting,cozy area.It is generally used in rooms where everyone gathers to visit or relax(living rooms,bedrooms,dining rooms,etc.)
Natural White creates a natural,daylight effect.This is the best selling strip as it mimics natural light and is comfortably used anywhere in the home.This is our most popular strip for under cabinet LED lighting.
Cool White complements contemporary and modern styles,casting a bright,fresh glow.Cool white is great for task lighting as it is a brighter,more focused light.The bright,cool colors are used the most in bathrooms,kitchens and work spaces.
Length of led light strips
You have to count how many meter led strip light you want in the project.That will give you an idea of the cost of the project.Normally,the strip light comes in 5meter/reel.You can ask if the supplier can custom made length for you.For some big lighting project,factory can customization led light strips.You can order different length in different quantity.
LED Strip Wattage and Power Supply
Led strips light have DC12V and DC24V version.Normally it have a mark in the PCB board.Then you cannot make a mistake.
And in the label you can know how many wattage per meter of the strips.Then we can easy to count the wattage of the alimentation led.
For example,LT-2835WW120R-W24.DC24V,15W/M.
In a project,we need to use 10meter,then total wattage is 15W/M*10meter=150W.Normally we need the power supply bigger 20% of the total wattage.Then means 150w*1.2=180w.We can choose a led driver output DC24V and wattage bigger than 180w.
LED Power Supply Options:
- Plug-in Adapter–Plug straight into your wall to power your LED strip lights.
- Hardwire Power Supplies–Directly wire in between your line voltage wiring and your LED Strips.
- Dimmable Power Supply–triac,0-10v dimmable et Alimentation dimmable Dali
- Batteries–DC12V battery or DC3V battery
Wiring and Connecting LED Strips
We suggest using strip light 5meter in series for DC12V and 10meter in series for DC24V.In this way, the brightness from the beginning to the end will not have big different.
When we are using led light strip in big project,we can connect the strips in parallel.First we connect a wire from the power supply.Second,we connect all the strip light to that wire.First of all,you need to count the total wattage of the strip light.Then the wattage of the power supply need 20% bigger than the total wattage of the strip lights.
How to connect led light strips without soldering?
From our experience,soldering is the best way to connect led light strips.But in some place,we don’t have soldering iron or we just using once.So does it any way to connect led strips without soldering?
Lightstec a fast connectors for connect led strips.We have 8mm,10mm and 12mm connector for different size PCB.And we have connector for single color led strips and RGB connector for RGB change light strips.We also have connector with wires,then you can connect the strip light to the power supply.
Gradation des lumières de bande de LED
Led light strips are dimmable.There are many ways can dim the strips.
We can use dimmable power supply:
Alimentation triac dimmable
0-10 dimmable power supply
DALI dimmable power supply
We can use dimmer between strip light and normally power supply.
In this post you can check how to dim a led light strips.
Mounting LED Light Strips
The strip light have 3M tape backside.It is helpful for mounting.But it is not well for some surface.We have solutions as following.
- Colle silicone-That is effect for most of the mounting surface
- Led Mounting clips-Better for waterproof version strips
- Mounting profile-we have types of led aluminum profile for strip light
Conclusion:
There are lots of information in this post.We want you after reading this post then you know more about strips light.We are happy to hear from you if you have any request of led light strips.
