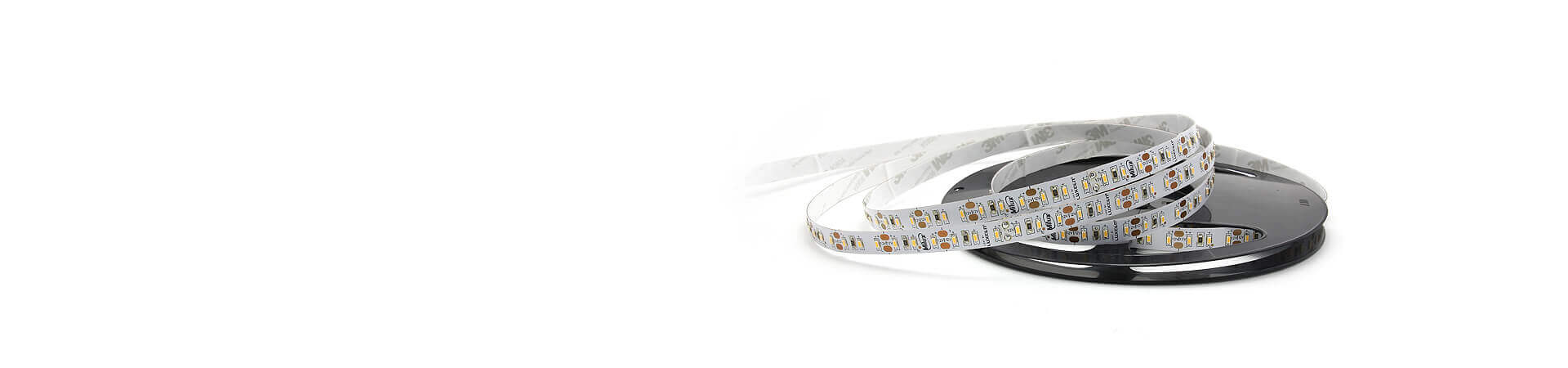

SMD 3014 LED STRIP LIGHTS

2400K,2700K, 3000K, 4500K, 6500K
High Color Rendering Index(CRI>80 CRI>90)
IP33, IP55, IP65, IP67 Waterproof vision
Input DC12V, DC24V Constant Voltage Version
Different types of SMD3528 led strips for options
LED Brand: Epistar 3014 LED
CE ETL ROHS

Specifications

3014 constant voltage LED strip light series Lightstec 3014 LED strip light series is high brightness led strip light. 30ma,9-10lm each led. Ra80 and Ra90 available. DC12V and DC24V vision. 60led/m 7.2W LED strip light is widely used in hotel, shopping mall, kitchen illumination. The customized length and customized design are warmly welcome.Lightstec as a quality led strip light factory,we will care about your requirements.

Model NoLT-3014WW60R-W12/24LT-3014WW120R-W12/24LT-3014WW238R-W24
SMD TypeEpistar 3014Epistar 3014Epistar 3014
Input voltageDC24V/DC12VDC24V/DC12VDC24V
LED Q'ty60LEDs/m120LEDs/m238LEDs/m
Power/m7.2W/M14.4W/M19W/M
Max current / LED30mA30mA30mA
SMD LED spacing16.6mm8.3mm8.4mm
Lumen / m(Max)540-600LM1000-1200LM2000-2400LM
CRI(Ra)>90Ra>80Ra>90Ra>80Ra>90Ra>80Ra
Minim cuttable length100mm (3LEDs 12V)
50mm (6LEDs 24V)
50mm (3LEDs 12V)
25mm (6LEDs 24V)
50mm (6LEDs 24V)
PCB Width8mm8mm15mm
Energy gradeAAA
Warranty3years3years3years
Working hour30000h30000h30000h
Illumination Angle120°120°120°
Working temperture.-20℃~+45℃.-20℃~+45℃.-20℃~+45℃

Simple compare technical list

Model NoLED Q'ty
/Meter
LED Color
Available
Max Power
/Meter
Input
Voltage
Min cuttable
Length
SMD LED
Spacing
Max Current
/LED
PCB Width
Available
LT-3014WW60R-W12/24602400-8000K, red,green,blue7.212V100mm16.6MM30ma10mm
24V50mm
LT-3014WW120R-W12/241202400-8000K, red,green,blue14.412V50mm8.3MM30ma10mm
24V25mm
LT-3014WW240R-W24
(double line)
2402400-8000K, red,green,blue28.824V50mm8.3MM30ma15MM

LT-3014WW60R-W12/24

SMD 3014 LED STRIP LIGHT 60LED/M DC12/24V 6W/M

LT-3014WW120R-W12/24

SMD3014 LED STRIP LIGHT 120LED/M DC12/24V 12W/M

LT-3014WW238R-W24

SMD 3014 LED STRIP LIGHT 238LED/M DC24V 19W/M

3014 LED Strip Light Accessories

Non-Waterproof  Types Led Strip Light Connector

+ 2pin-Corner- single color connector

2pin-wireless-single-color-connector

L-2pin-Corner-single color connector

T-2pin-Corner-single color connector

2pin-double-head-Connector single color

Female-male-connector

2pin-Wireless-connector n8bb

LED-Strip-Hold-Clips

Waterproof  Types Led Strip Light Connector

2pin-Wireless-connector single color waterproof

2pin-single-head-connector-waterproof

LED-waterproof-DC-connector waterproof

Silicone-clips

How to connect SMD3014 led strip light to power supply?Complete Guide

When we are using the SMD3014 led strip light ,we need to use a led power supply.

If some of the lighting project need dimming function, we also need to connect to dimmable power supply or dimmable controller.

Here we show you how to connect the strip light to power supply.

how to connect the led strip light with led power supply

how to connect the rgb led strip light with led power supply

how to connect the rgbw led strip light with led controller
