As a leading Chinese LED strip light manufacturer, Lightstec is committed to providing high-quality, innovative lighting solutions to meet diverse customer needs. This article will offer a detailed guide on how to wire various types of LED strip lights, including single-color, tunable white, RGB, RGBW, RGBCCT, and addressable LED strips. We will also explore important concepts such as voltage drop and parallel connection, and discuss industry trends and market analysis relevant to LED strip lighting.

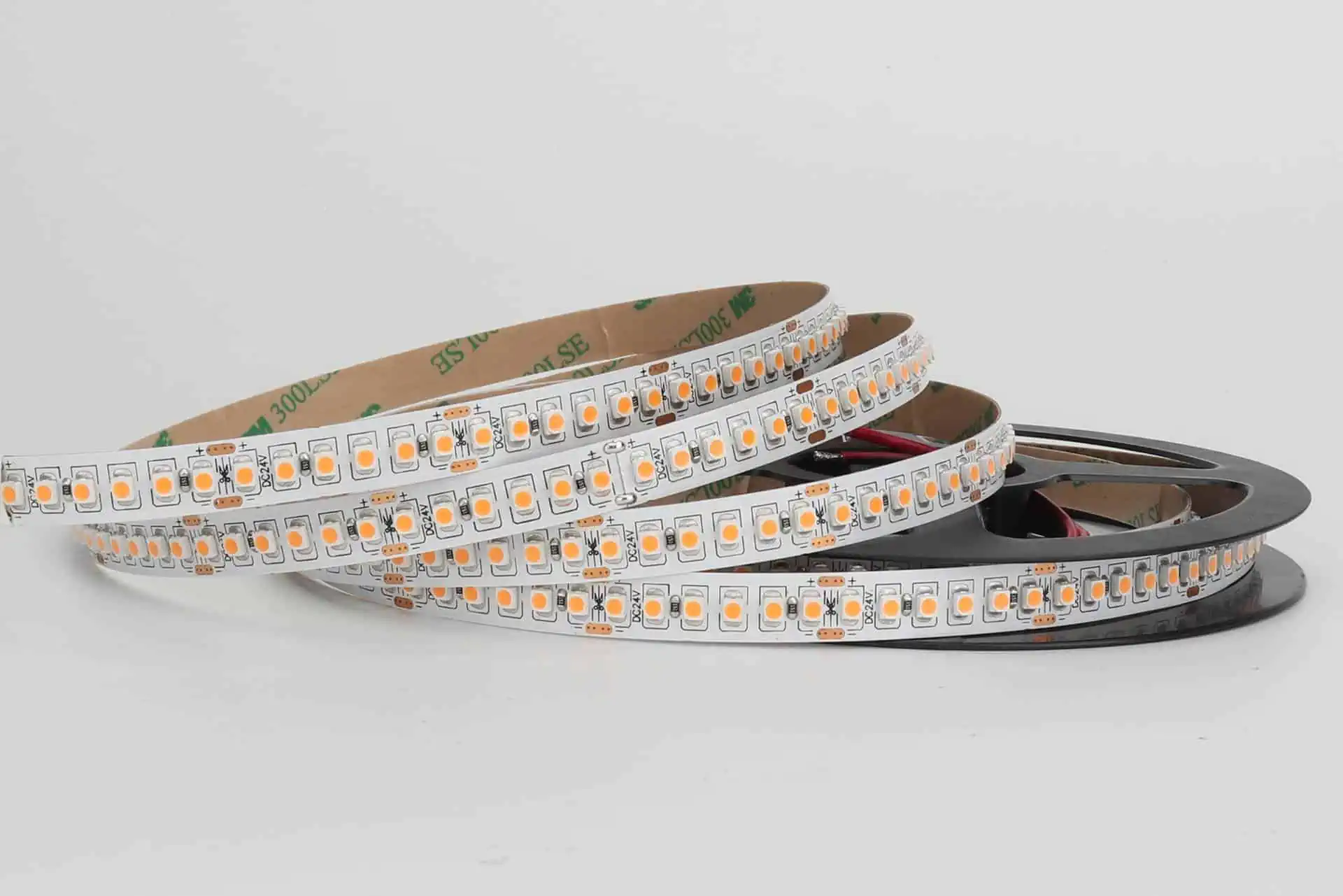

Single-color-LED-strip-light

Introduction to LED Strip Lights

LED strip lights have gained immense popularity due to their modern aesthetic appeal, energy efficiency, and ease of installation. They are widely used in residential, commercial, and industrial settings for accent lighting, task lighting, and ambient lighting. Lightstec offers a wide range of LED strip lights designed to cater to different applications and preferences, ensuring optimal performance and customer satisfaction.
Tunable-white-led-strip-light
Article Guide

    Understanding Voltage Drop and Parallel Connection

    Voltage Drop

    Voltage drop is a common issue in LED strip lighting installations, especially in long LED strips. It occurs when the voltage decreases as it travels along the length of the strip, resulting in uneven brightness and reduced performance. The primary causes of voltage drop include the resistance of LED components and the connecting wires. To mitigate voltage drop, consider the following solutions:
    • Parallel Connection: Connecting multiple LED strips in parallel to a power supply ensures consistent voltage distribution and reduces the risk of voltage drop.
    • Power Injection: Adding extra wires at different points along the LED strip and connecting them to the main power source can help maintain consistent brightness.
    • Ultra-Long Constant Current LED Strips: These strips are designed to maintain a constant current, reducing the impact of voltage drop over long distances.

    Parallel Connection

    Parallel connection is a highly recommended method for connecting multiple LED strips to a power supply. This approach ensures that each strip receives the same voltage, preventing uneven brightness and potential performance issues. In contrast, series connection should be avoided as it can lead to significant voltage drop and compromised lighting quality.

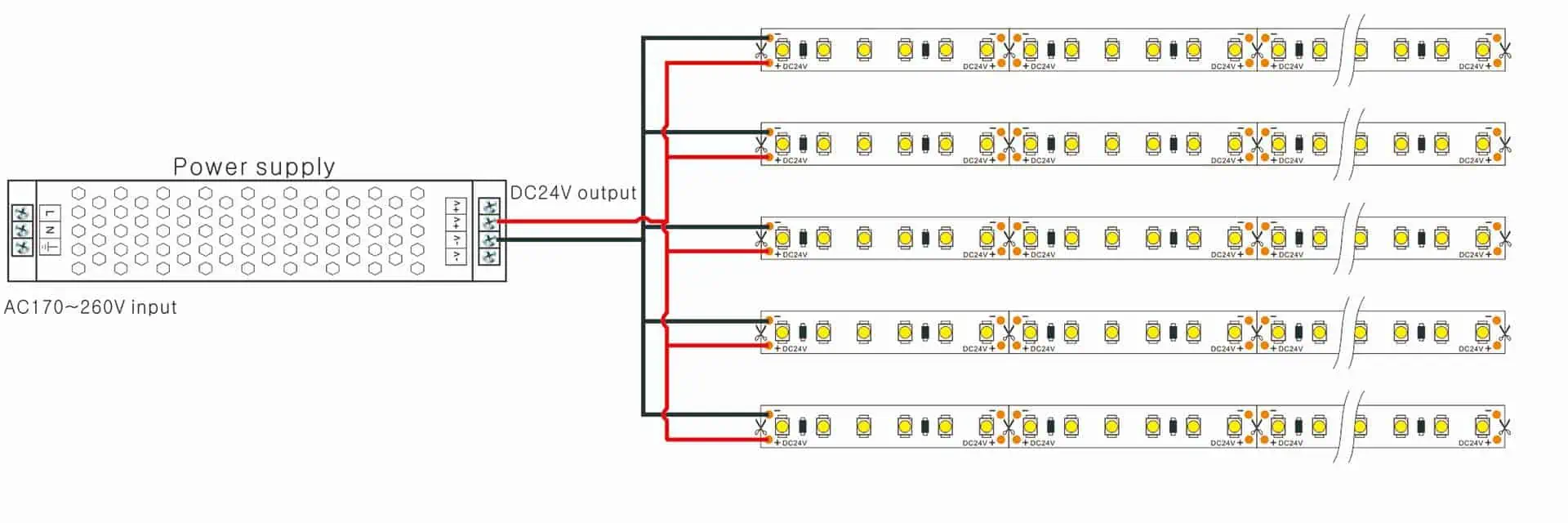

    led-strip-parallel-connection

    Wiring Single Color LED Strip Lights

    Single-color LED strip lights are the simplest to install, featuring only two wires and emitting light of a specific color. They are ideal for basic lighting applications where color consistency is crucial.
    led-strip-serial-connection

    Wiring with Non-Dimmable LED Drivers

    For non-dimmable applications, connect the single-color LED strip directly to a non-dimmable power source. Ensure that the total power consumption of the LED strips does not exceed 80% of the power supply's capacity to prevent overloading.
    led-strip-both-end-connection

    Wiring with Dimmable LED Drivers

    To adjust the brightness of single-color LED strips, use dimmable power supplies. Common dimming methods include 0-10V, Triac, and DALI. Each method has its unique connection requirements and is suitable for different applications. For instance, 0-10V dimming is ideal for commercial settings, while Triac dimming is more common in residential applications.
    single-color-led-strip-Triac-connection-diagram
    single-color-led-strip-0-10V-connection-diagram
    single-color-led-strip-DALI-connection-diagram

    Wiring with LED Controllers

    LED controllers offer enhanced functionality, allowing for precise brightness control. For small-scale installations, a basic LED controller suffices. However, for larger projects involving multiple LED strips, a PWM amplifier may be necessary to ensure adequate power distribution.

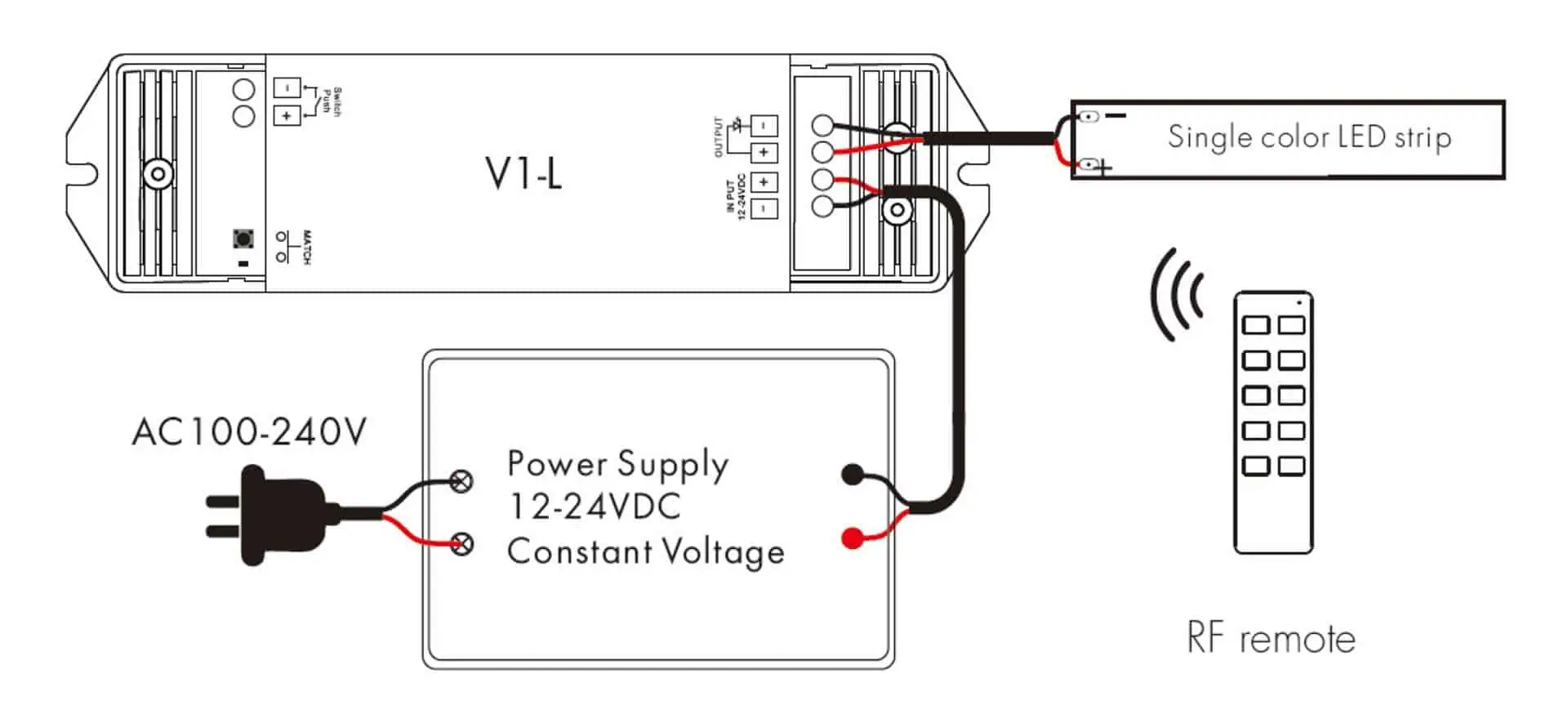

    single-color-led-strip-controller-connection-diagram-without-amplifier

    Wiring Tunable White LED Strip Lights

    Tunable white LED strip lights, also known as CCT adjustable LED strips, feature three wires and two different color temperature LEDs. They enable users to adjust the mixed color temperature by controlling the brightness of these LEDs.

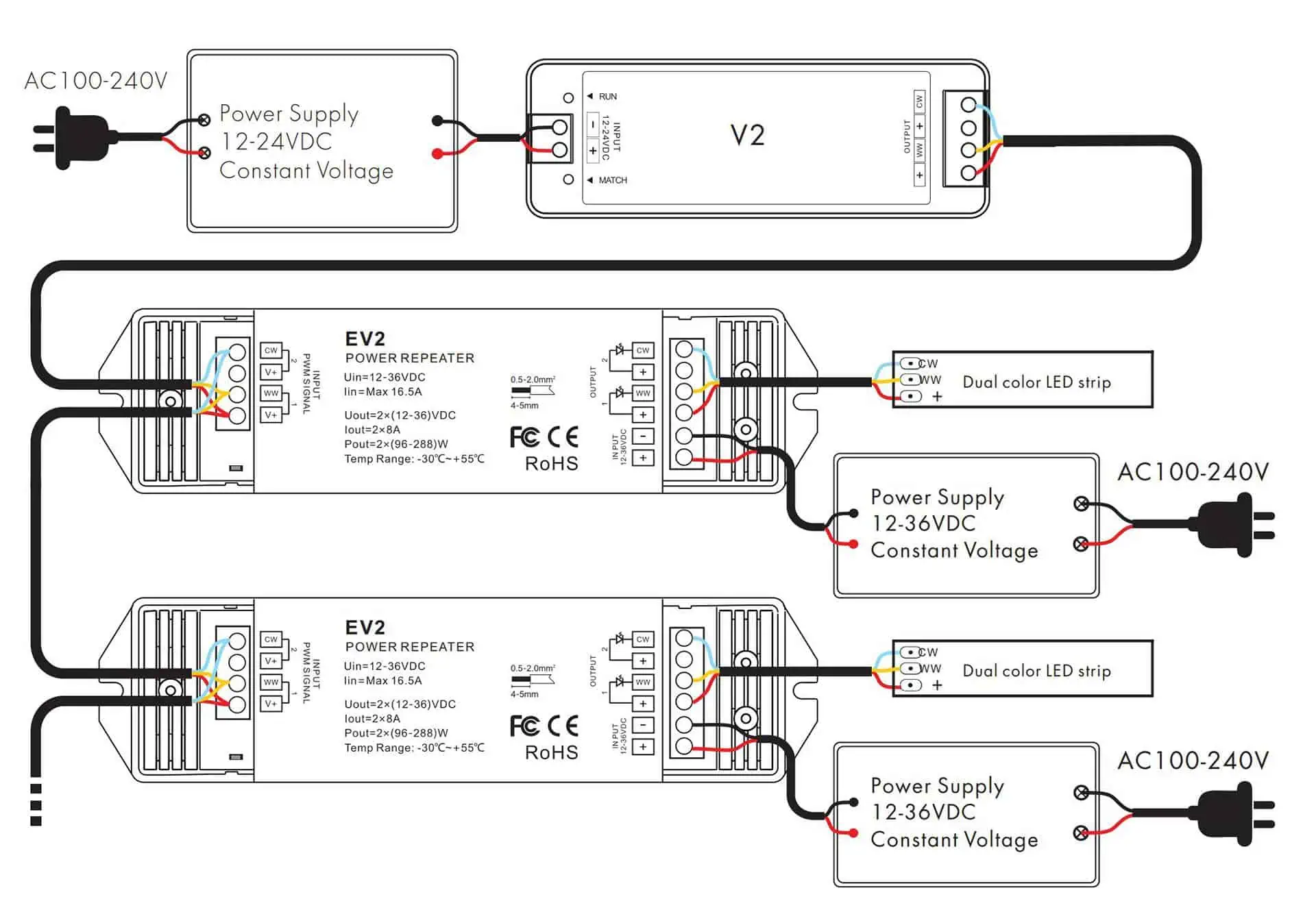

    Tunable-white-controller-connection-with-amplifier-diagram

    Wiring with Dimmable LED Drivers

    While most dimmable power supplies are designed for single-color LED strips, DALI drivers with the DT8 protocol can support tunable white LED strips. This allows for seamless integration into smart lighting systems.
    Tunable-white-controller-connection-without-amplifier-diagram

    Wiring with LED Controllers

    For small-scale tunable white LED installations, a dedicated tunable white LED controller is sufficient. For larger projects, a PWM amplifier is recommended to ensure consistent performance

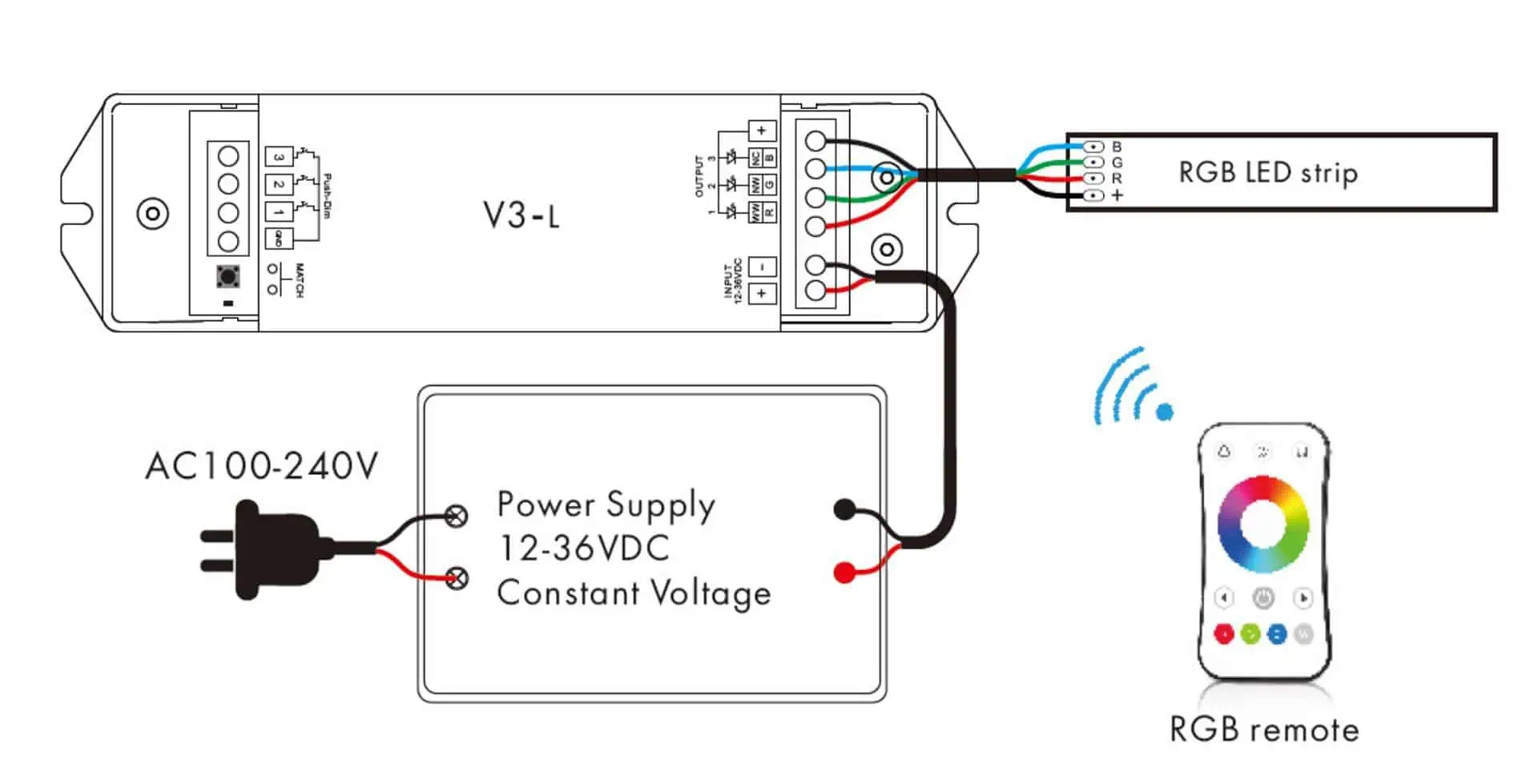

    RGB-LED-strip-controller-connection-without-amplifier-diagram

    Wiring RGB LED Strip Lights

    RGB LED strip lights consist of four wires—common anode, red, green, and blue—and are primarily used with LED controllers. They offer vibrant color options and are ideal for decorative lighting.
    RGB-LED-strip-controller-connection-without-amplifier-diagram

    Wiring with Dimmable LED Drivers

    DALI DT8 RGB LED drivers are suitable for RGB LED strips, enabling precise control over color and brightness.

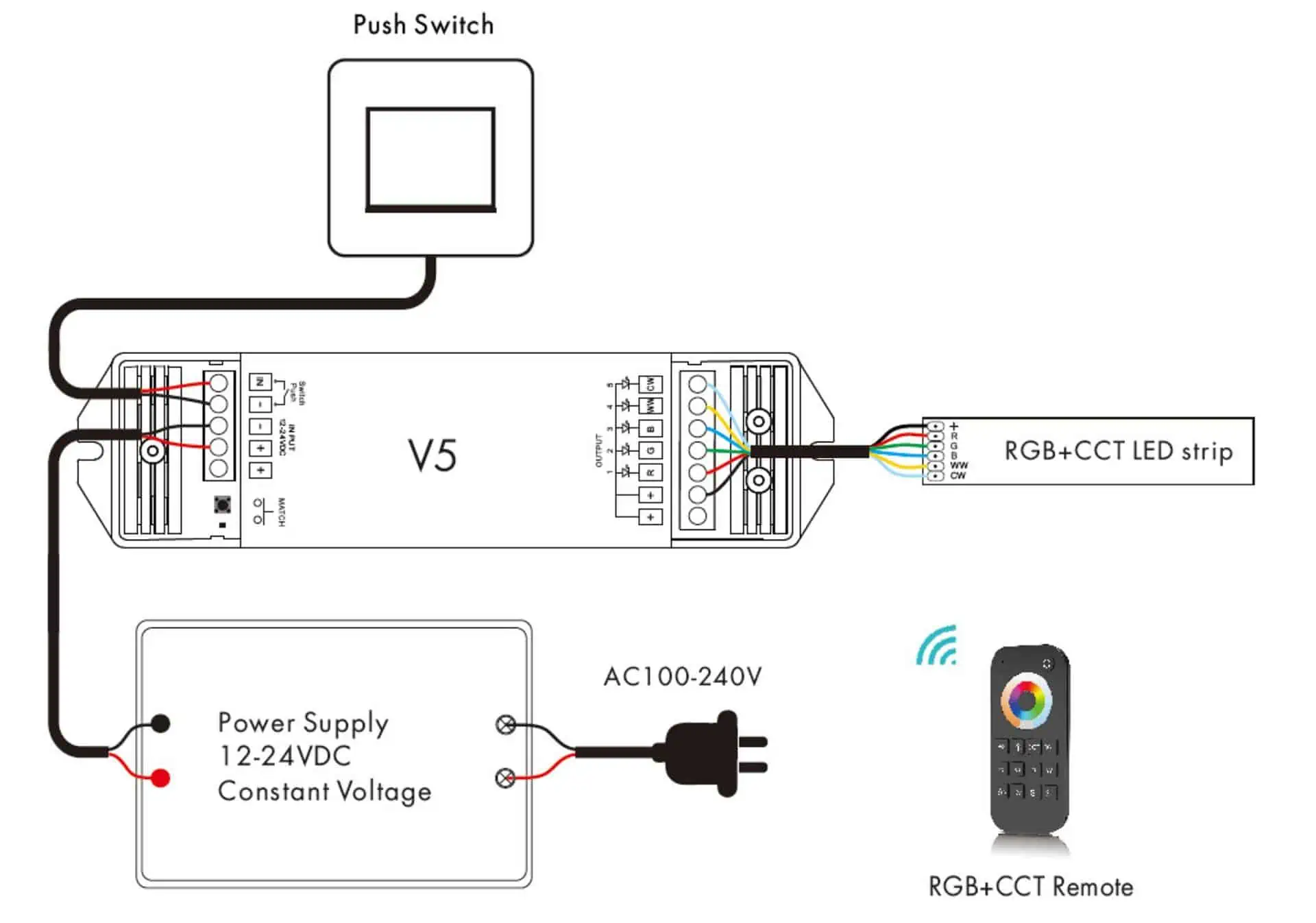

    RGBCCT-LED-strip-controller-without-amplifier-connection-diagram

    Wiring with LED Controllers

    RGB LED strips can be connected to LED controllers with or without a PWM amplifier, depending on the scale of the installation.

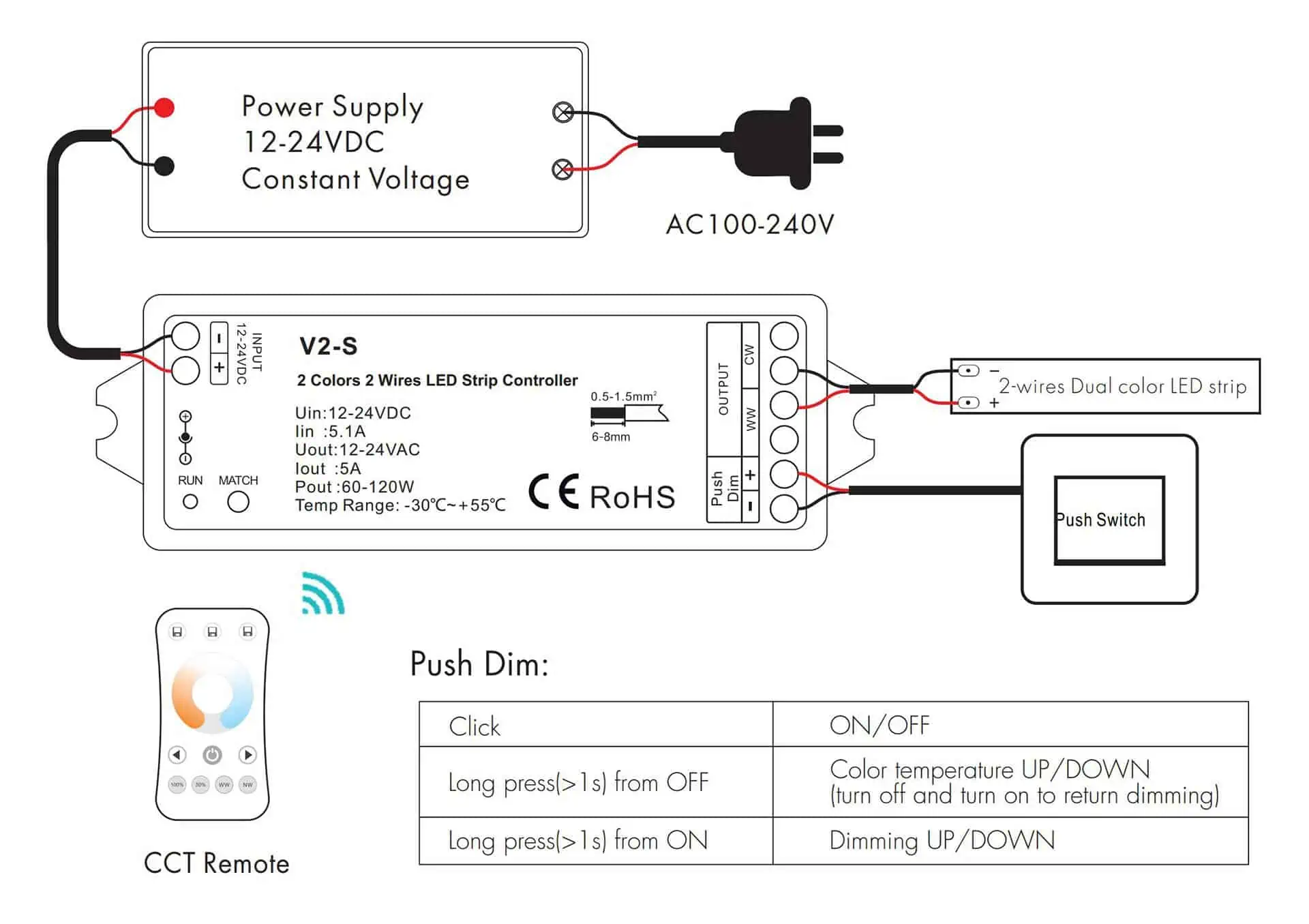

    2-wire-tunable-white-led-strip-connection-diagram

    Wiring RGBW LED Strip Lights

    RGBW LED strip lights feature four color channels: red, green, blue, and white. They provide the flexibility to create both vibrant colors and pure white light.

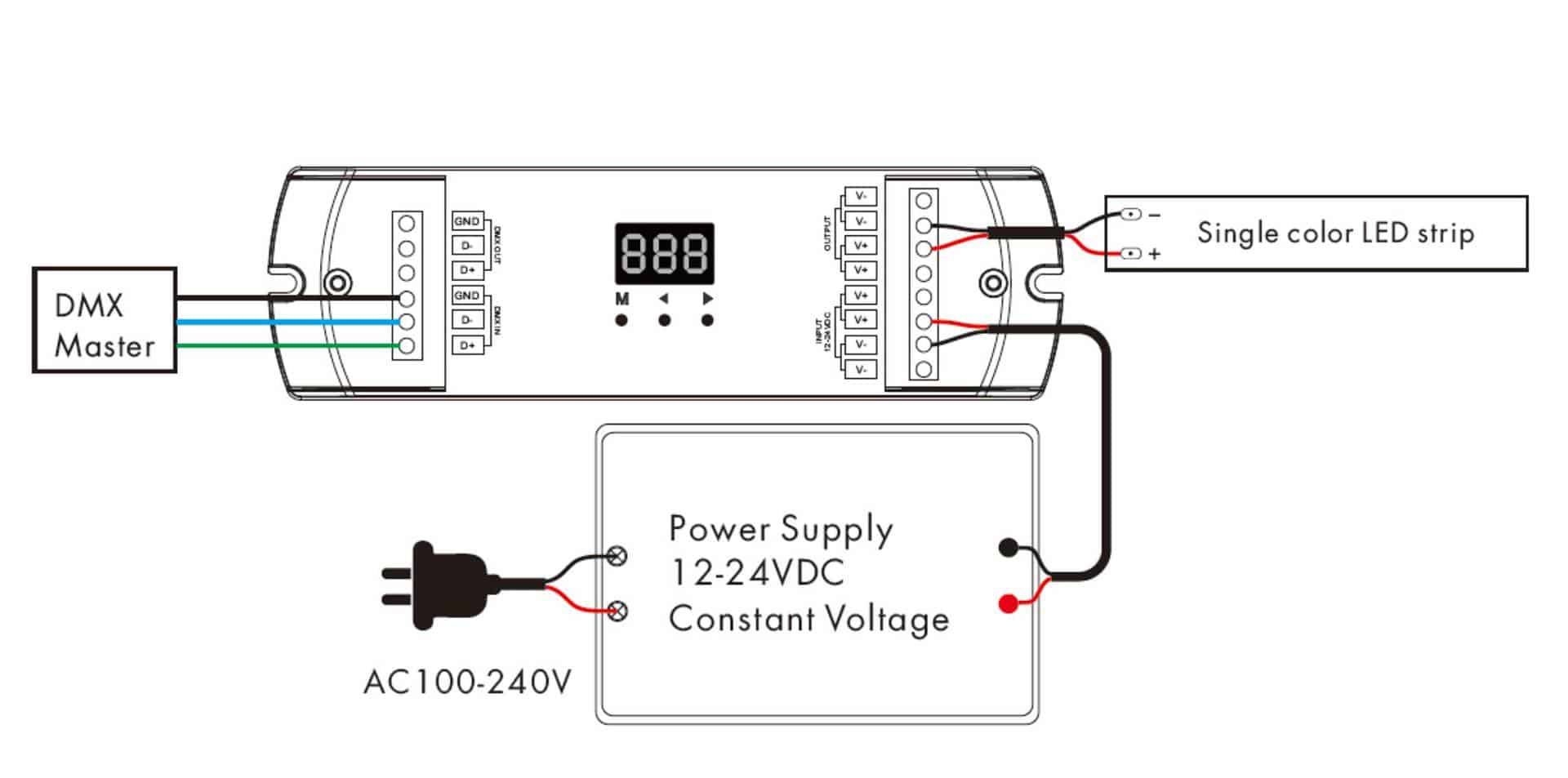

    single-color-led-strip-DMX512-decoder-connection-diagram

    Wiring with Dimmable LED Drivers

    Use DALI DT8 RGBW LED drivers for RGBW LED strips to achieve precise control over all color channels.

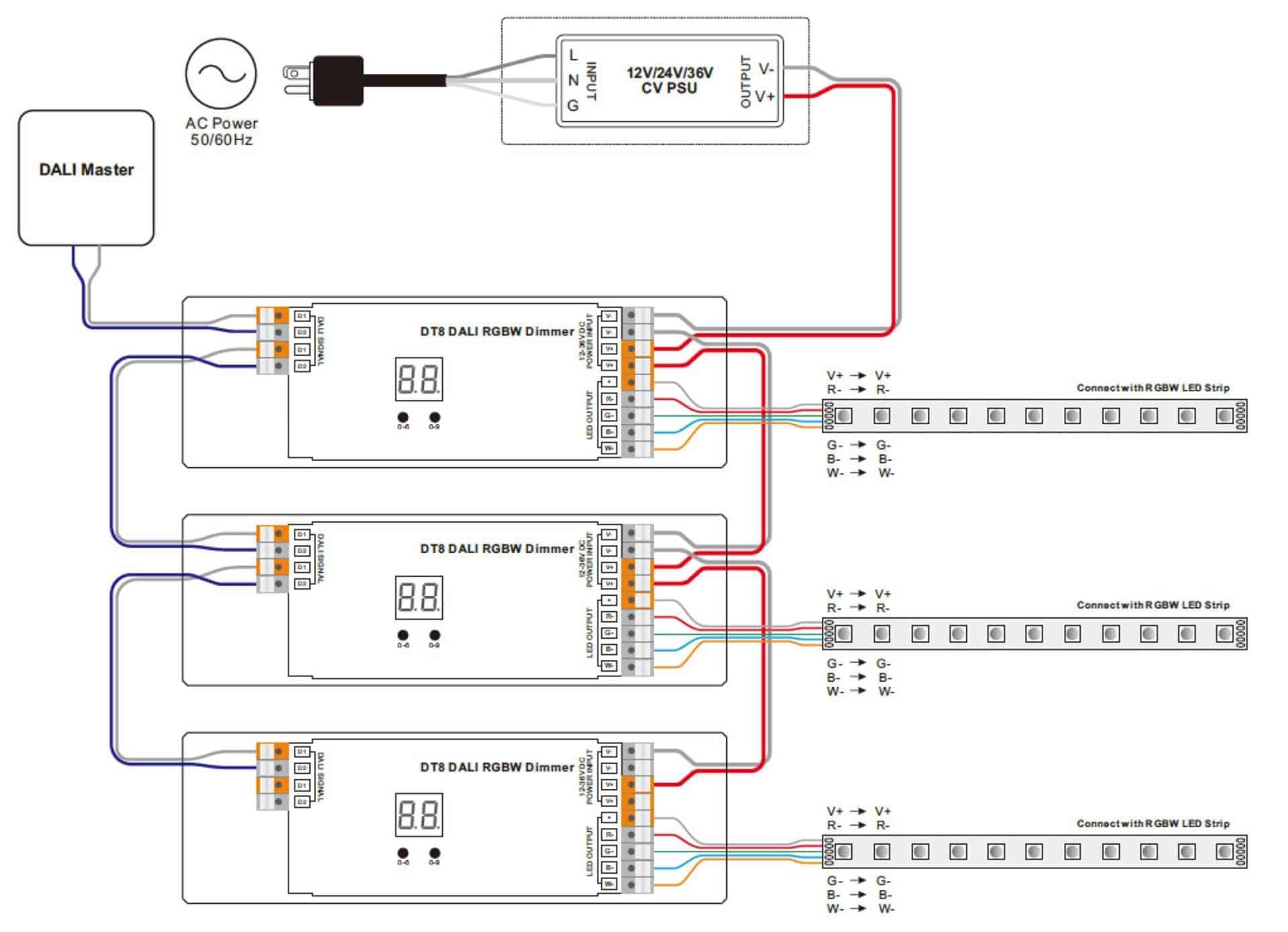

    RGBW-LED-strip-DALI-DT8-connection-diagram

    Wiring with LED Controllers

    Similar to RGB LED strips, RGBW LED strips can be connected to LED controllers with or without a PWM amplifier.
    RGB-LED-strip-DMX512-decoder-connection-diagram

    Wiring RGBCCT LED Strip Lights

    RGBCCT LED strip lights include red, green, blue, and dual white channels (cool white and warm white), offering a full spectrum of colors and adjustable color temperature.

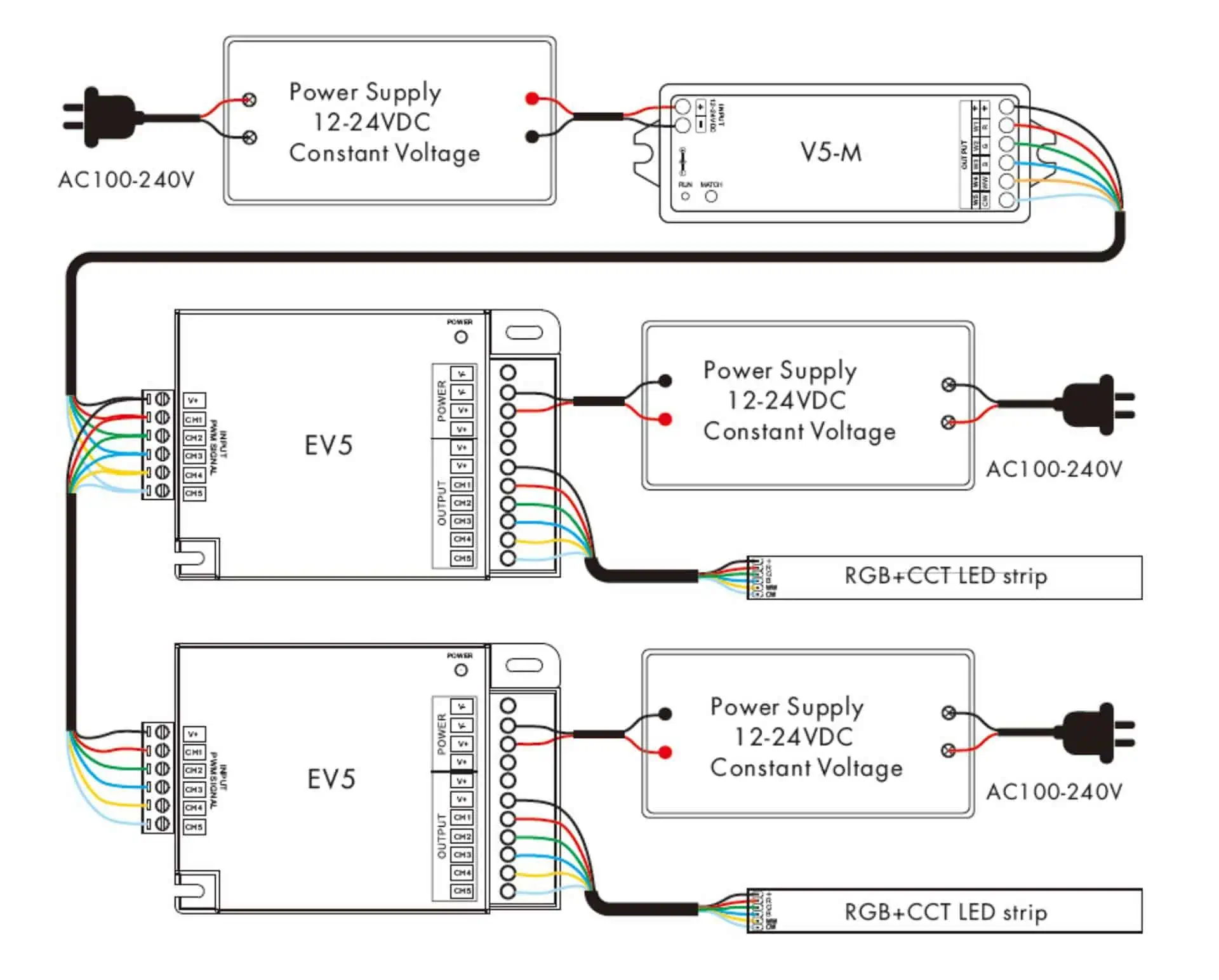

    RGBCCT-LED-strip-controller-with-amplifier-connection-diagram

    Wiring with Dimmable LED Drivers

    DALI DT8 RGBCCT LED drivers are designed to handle the complex requirements of RGBCCT LED strips.
    2-wire-Switch-ON-OFF-led-strip-connection-diagram

    Wiring with LED Controllers

    LED controllers for RGBCCT LED strips may require a PWM amplifier for large-scale installations to ensure consistent performance.

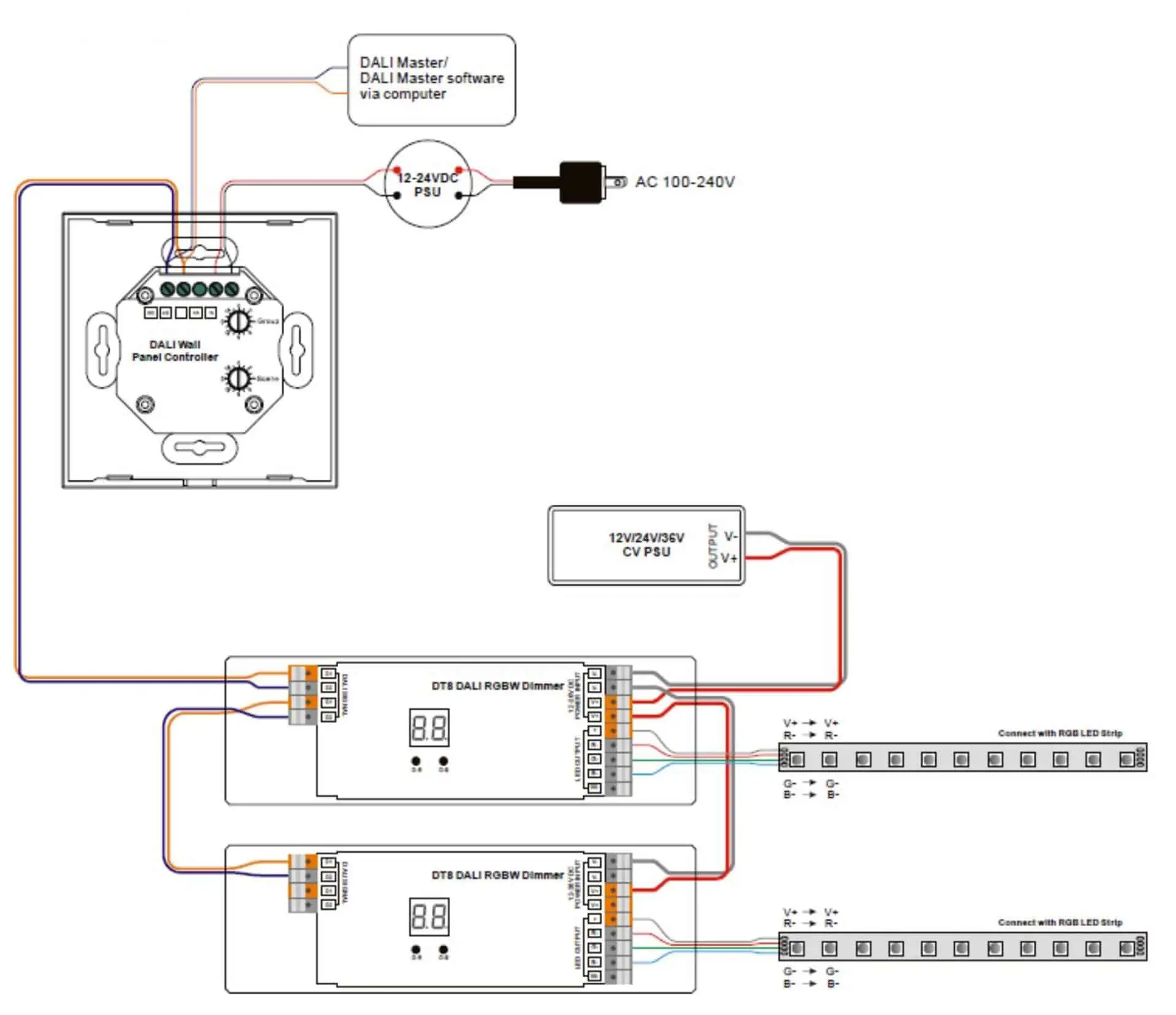

    RGB-LED-strip-DALI-DT8-connection-diagram

    Wiring Addressable LED Strip Lights

    Addressable LED strip lights, also known as digital LED strips, feature control ICs that allow individual control of LEDs or groups of LEDs. They are ideal for creating intricate lighting patterns and dynamic effects.

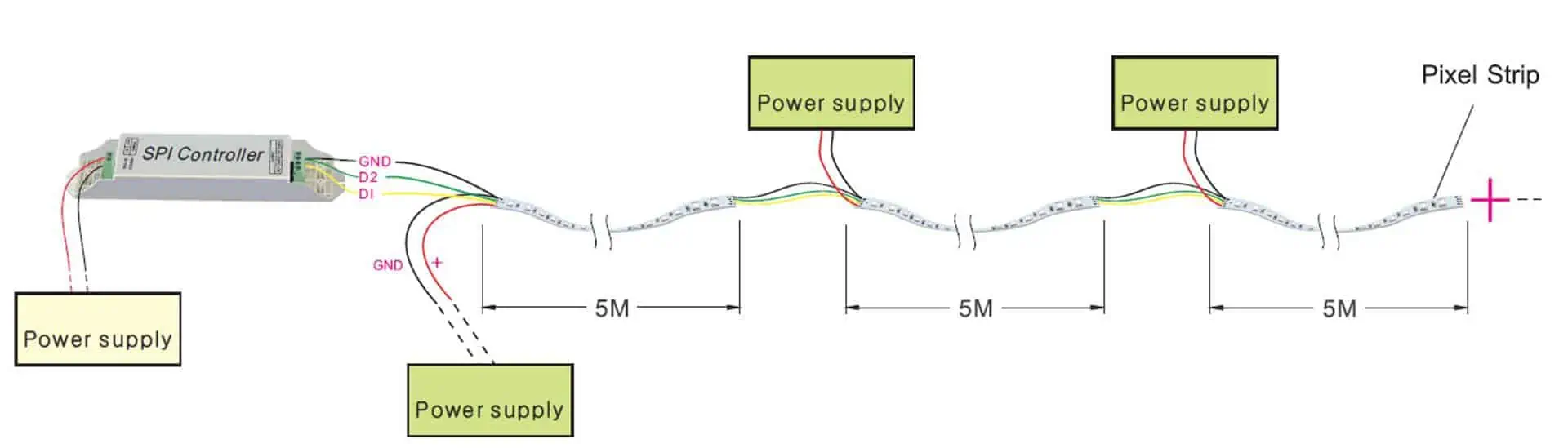

    SPI-addressable-led-strip-with-data-and-backup-data-wire-connection-diagram

    Wiring SPI Addressable LED Strip Lights

    SPI addressable LED strips receive SPI signals directly and change color and brightness accordingly. They can be wired with a data channel only, or with additional data and clock channels for enhanced functionality.
    SPI-addressable-led-strip-with-data-wire-only-connection-diagram

    Wiring DMX512 Addressable LED Strip Lights

    DMX512 addressable LED strips receive DMX512 signals directly and require setting the DMX512 address before use. They offer advanced control options for professional lighting applications.

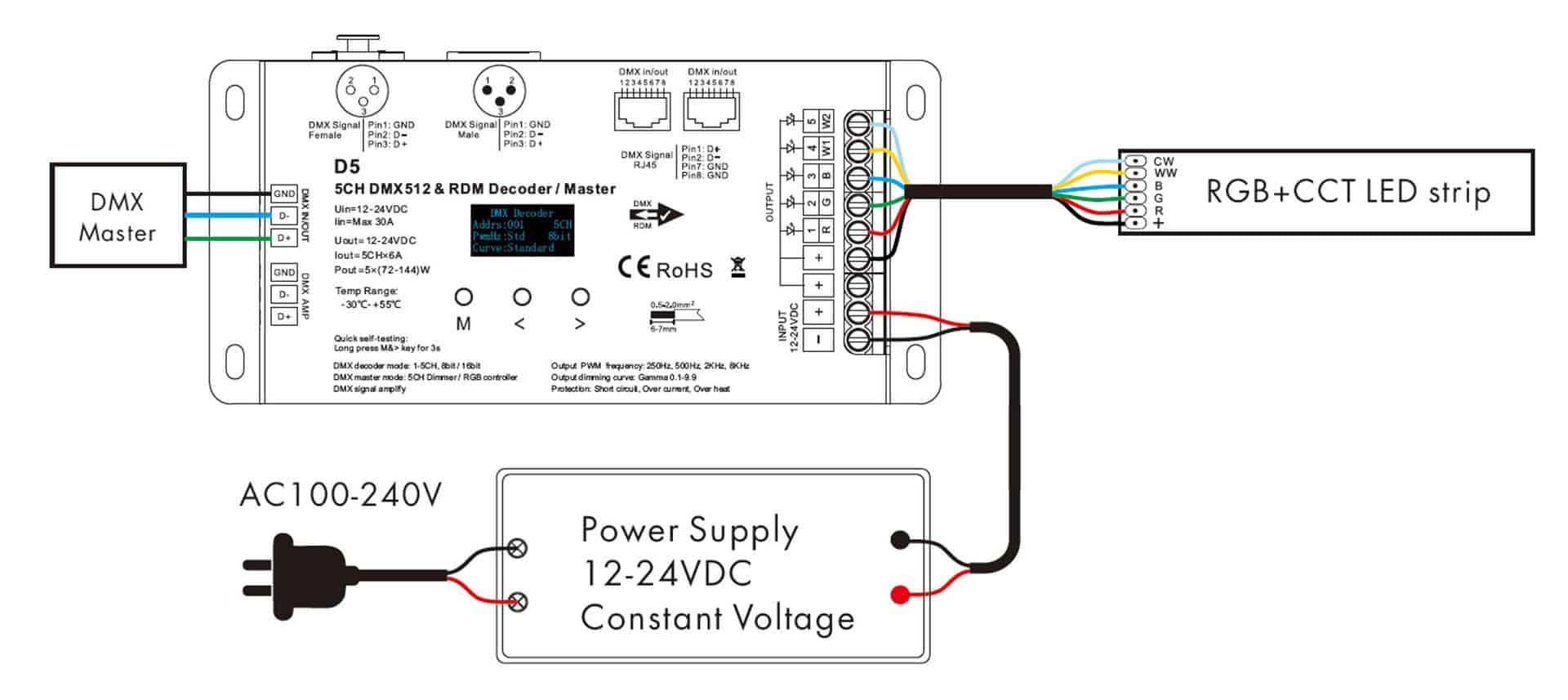

    RGBCCT-LED-strip-DMX512-decoder-connection-diagram

    Wiring High Voltage AC LED Strip Lights

    High voltage AC LED strip lights operate directly from a mains power supply (110V or 220V AC) without the need for a LED transformer. They are suitable for long runs and larger installations, providing a convenient and efficient lighting solution.

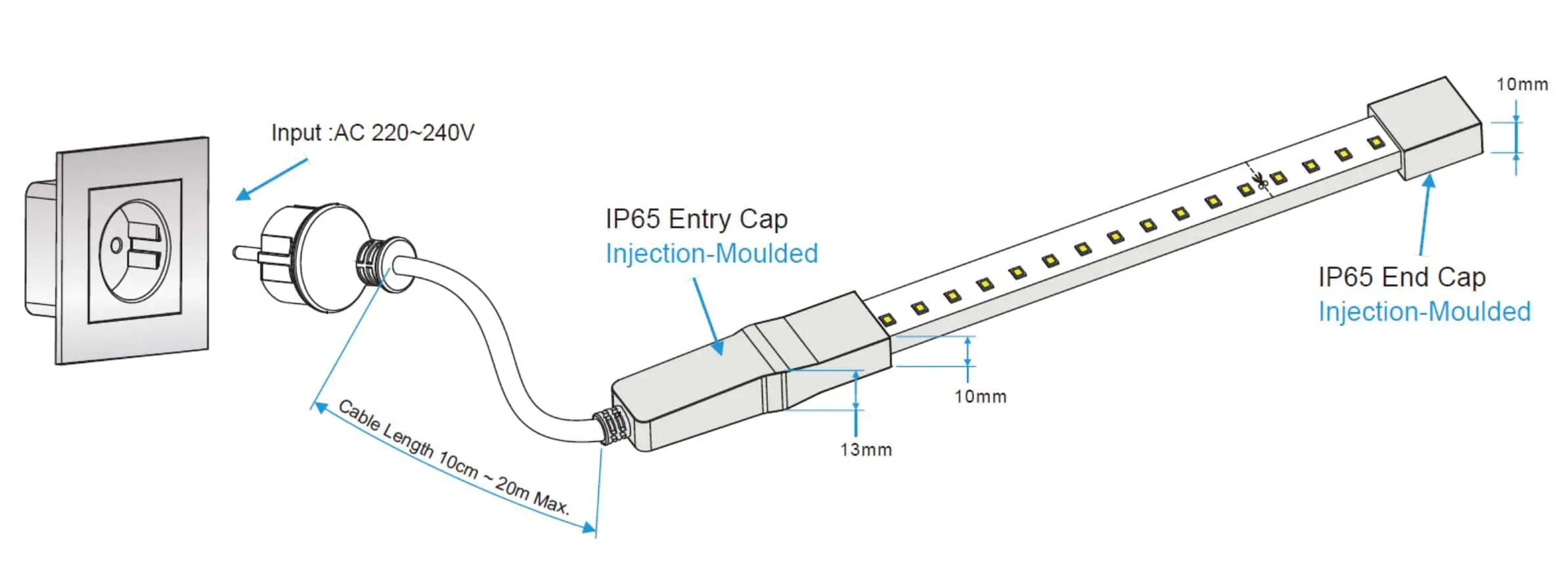

    high-voltage-ac-led-strip-connection-diagram

    Industry Trends and Market Analysis

    The LED strip light market is experiencing significant growth, driven by rapid urbanization, rising disposable incomes, and the increasing adoption of smart home technologies. The Asia-Pacific region, led by countries such as China, Japan, and South Korea, is at the forefront of this growth, supported by substantial investments in smart city projects and infrastructure development.
    Key trends in the industry include the increasing integration of smart controls, customization and personalization options, rising demand for waterproof LED strip lights, and the growing popularity of RGB LED strip lights. These trends present significant opportunities for LED strip light manufacturers to expand their market presence and cater to evolving customer needs.

    Lightstec's Customization Options

    At Lightstec, we pride ourselves on offering a wide range of customization options to meet specific customer requirements. Our LED strip lights are available in various IP protection ratings (IP20, IP65, IP68), voltage requirements (12V and 24V), and color options. We also provide customizable LED strip kits, including aluminum channels, mounting accessories, and power supplies, to ensure seamless installation and optimal performance.

    Conclusion

    Understanding how to wire different types of LED strip lights is essential for achieving optimal lighting performance and customer satisfaction. Lightstec is committed to providing high-quality LED strip lights and comprehensive support to help our customers create stunning lighting effects for various applications. With our extensive product range and customization options, we are well-positioned to meet the evolving demands of the LED lighting market.
    For more information on Lightstec's LED strip lights and other lighting solutions, please visit our website or contact us directly. We look forward to illuminating your projects with our innovative and reliable lighting products.
