How to Cut and Connect LED Strip Lights at Home


LED strip lights are a versatile and decorative lighting solution for homes, adding ambient lighting and creating a cozy atmosphere. Cutting and connecting LED strip lights at home is a relatively simple task, but it's essential to follow the correct steps to ensure safety and functionality. Here's a guide on how to do it:

Materials Needed:

  • LED strip lights

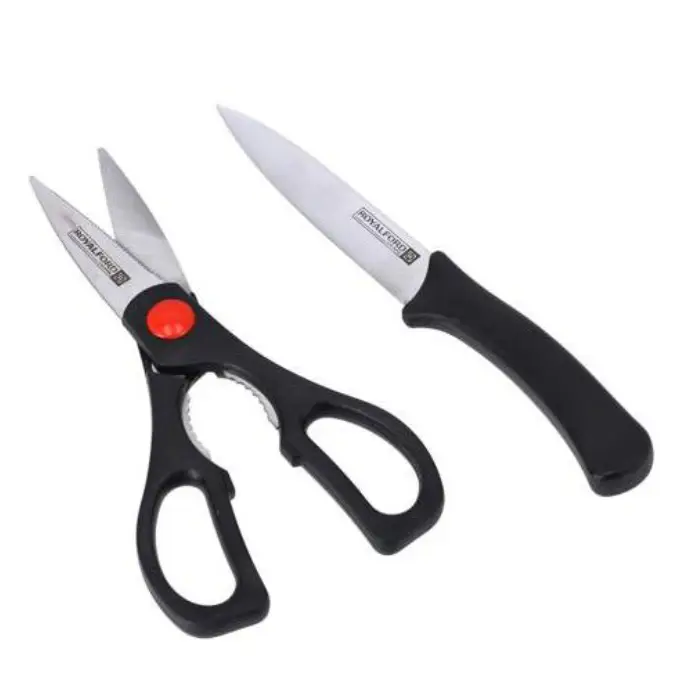

  • Scissors or a sharp utility knife

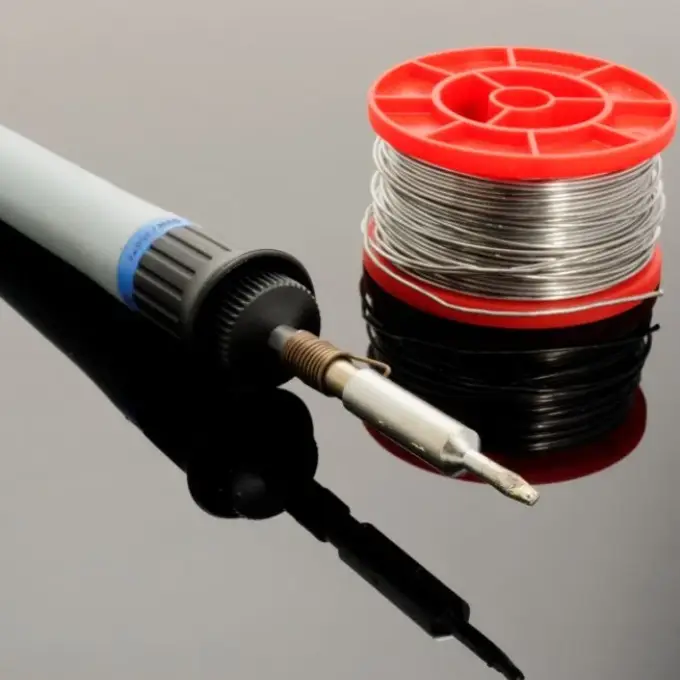

  • Soldering iron and solder (if making permanent connections)
  • LED strip light connectors (for easier and safer connections)

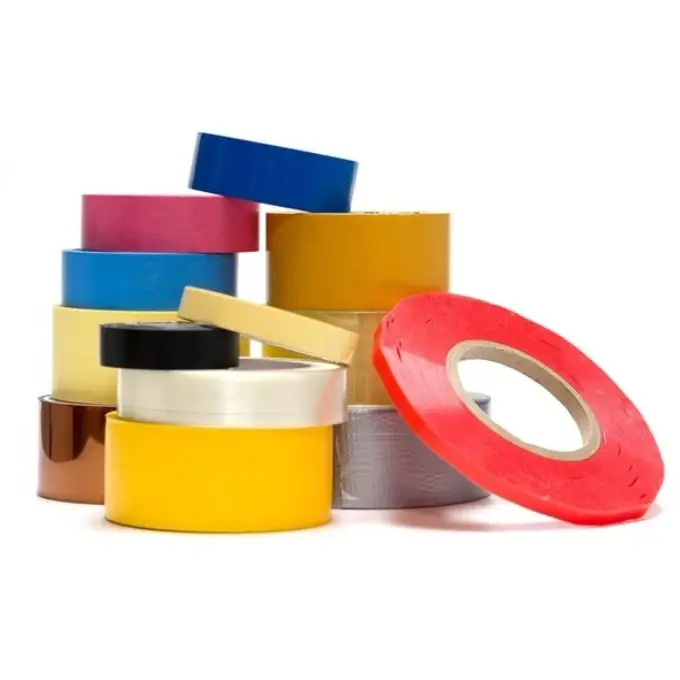

  • Tape or adhesive for securing the strip lights
Article Guide

    Steps for Cutting LED Strip Lights:

    1.Locate the Cutting Marks: LED strip lights usually have designated cutting marks along their length, indicated by a small scissor symbol or a line across the strip. These marks show where it's safe to cut the strip without damaging the circuitry.

    1,strip-light,-connector,scissors,fast-connector

    2. Measure and Mark: Determine the length of strip lights you need and mark the cutting point using a pencil or marker, aligning it with one of the designated cutting marks.

    2,measur-the-strip-light-length

    3. Make the Cut: Using scissors or a sharp utility knife, carefully cut along the marked line. Make sure not to cut into the copper pads on the strip, as this can damage the circuitry.



    3,cut-the-led-strip-light

    Steps for Connecting LED Strip Lights:

    1. Prepare the Connection Points: If you're connecting two strips directly, ensure that the copper pads on both strips are clean and free of debris. If using connectors, align the connector with the strip's copper pads.
      4.connector-and-strip-light
    2. Soldering (Optional): For a permanent and more secure connection, you can solder the copper pads of two strips together. Use a soldering iron and solder to carefully join the corresponding pads. This step requires some soldering skills and should be done with caution.
      7,middle-connector-and-strip-light
    3. Using Connectors: If soldering isn't an option, you can use LED strip light connectors. These connectors have metal prongs that align with the copper pads on the strip. Gently press the connector onto the strip, ensuring that the prongs make contact with the copper pads.
      8,middle-connector-and-strip-light-step-2
    4. Testing the Connection: Once the strips are connected, plug in the power supply and test the lights to ensure they work properly. If there are any issues, unplug the power immediately and recheck the connections.
      9,middle-connector-and-strip-light-step-3
    5. Securing the Strips: Use tape or adhesive to secure the strip lights in place, ensuring they won't move or come loose over time.
      11,middle-connector-with-wire-and-strip-light-step2
    Custom-sport-fitness-club-strip-light
    Custom-Outdoor-Strip-Lighting
    Custom-Commercial-LED-Strip-Lighting

    Remember to always handle electrical components with care and ensure the power is off when making connections. By following these steps, you can easily cut and connect LED strip lights at home, adding a touch of elegance and functionality to your living space.
