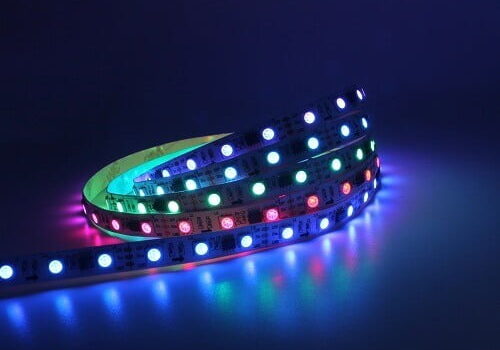

Magic Color Change Strip Light
Epistar SMD5050 RGB LED with Ic control
IP33,IP65Waterproof vision
Input DC12V Constant Voltage Version
Different types of SMD5050 led strips for options
CE ETL ROHS
Professional Magic LED Light Strip Manufacturer
5050 constant voltage Magic LED strip light series. Lightstec 5050 addressable LED strip light series is high brightness led strip light. 60ma,18-20lm each led. Ra80 and Ra90 available. DC12V and DC24V vision. 60led/m 14.4W LED strip light is widely used in hotel, shopping mall, light box,kitchen illuminating. The customized length and customized design are warmly welcome.
| Model No | LT-5050MAGIC30R-W12 | LT-5050MAGIC60R-W12 |
|---|---|---|
| SMD Type | Epistar 5050 RGB | Epistar 5050RGB |
| Input voltage | 12 V CC. | 12 V CC. |
| LED Q'ty | 30LEDs/m | 60LEDs/m |
| Power/m | 7.2W/M | 14.4W/M |
| Max current / LED | 60mA | 60mA |
| SMD LED spacing | 33.3mm | 16.6MM |
| Lumen / m | 180LM | 360LM |
| CRI(Ra) | >80 | >80 |
| Minim cuttable length | 100mm | 50mm |
| PCB Width | 10mm | 10mm |
| Energy grade | A | A |
| Garantía | 3years | 3years |
| Working hour | 30000h | 30000h |
| Illumination Angle | 120° | 120° |
| Working temperture | .-20℃~+45℃ | .-20℃~+45℃ |
Dimensions
Simple compare technical list
| Model No | LED Q'ty /Meter | LED Color Available | Max Power /Meter | Input Voltaje | Min cuttable Longitud | SMD LED Spacing | Max Current /LED | PCB Width Available |
|---|---|---|---|---|---|---|---|---|
| LT-5050MAGIC30R-W12 | 30 | RGB | 7.2 | 12 V CC. | 33.3mm | 100mm | 60ma | 10mm |
| LT-5050MAGIC60R-W12 | 60 | RGB | 14.4 | 12 V CC. | 16.6mm | 50mm | 60ma | 10mm |
MAGIC COLOR LED STRIP LIGHT VIDEOS
Lightstec Magic color led strip light PDF datesheet
