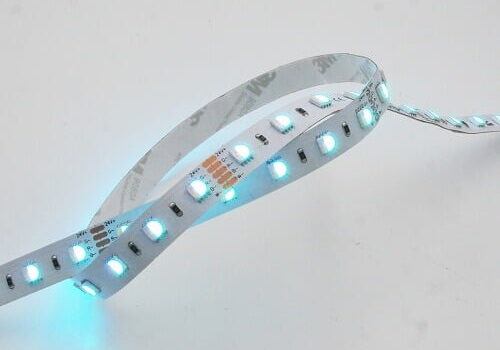

SMD 5630 LED STRIP LIGHTS

2400K, 3000K, 4500, 6500K
High Color Rendering Index(CRI>80 CRI>90)
High Brightness: 2400lm/m for Single-Line LED Strip
Input DC12V, DC24V Constant Voltage Version
LED Brand: Epistar 5630 LED

Parameter

SMD5630 constant voltage LED strip light series. Lightstec 5630 LED strip light series is hight brightness led strip light. 150ma,50-60lm each led. Ra80 and Ra90 available. DC12V and DC24V vision. 60led/m 24W LED strip light is widely used in hotel, shopping mall, kitchen illumination. The customized length and customized design are warmly welcome.Check this post: led strip light CRI & Brightness

Model NoLT-5630WW60R-W12LT-5630WW60R-W24
SMD TypeEpistar 5630Epistar 5630
Input voltageDC12VDC24V/
LED Q'ty60LEDs/m60LEDs/m
Power/m12W/M24W/M
Max current / LED60mA60mA
SMD LED spacing16.6mm16.6mm
Lumen / m2000-2400LM2000-2400LM
CRI(Ra)>90Ra
>80Ra
>90Ra
>80Ra
Minim cuttable length50mm (3LEDs 12V)100mm (6LEDs 24V)
PCB Width10mm10mm
Energy gradeAA
Warranty3years3years
Working hour30000h30000h
Illumination Angle120°120°
Working temperture.-20℃~+45℃.-20℃~+45℃

Dimensions

Simple compare technical list

Model NoLED Q'ty
/Meter
LED Color
Available
Max Power
/Meter
Input
Voltage
Min cuttable
Length
SMD LED
Spacing
Max Current
/LED
PCB Width
Available
LT-5630WW60R-W24602400-8000K, red,green,blue2424100mm16.66mm150ma10mm
LT-5630WW60R-W12602400-8000K, red,green,blue241250mm16.66mm150ma10mm

5630 LED Strip Light Accessories

Non-Waterproof  Types Led Strip Light Connector

+ 2pin-Corner- single color connector

2pin-wireless-single-color-connector

L-2pin-Corner-single color connector

T-2pin-Corner-single color connector

2pin-double-head-Connector single color

Female-male-connector

2pin-Wireless-connector n8bb

LED-Strip-Hold-Clips

Waterproof  Types Led Strip Light Connector

2pin-Wireless-connector single color waterproof

2pin-single-head-connector-waterproof

LED-waterproof-DC-connector waterproof

Silicone-clips

How To Choose SMD5630 Led Strip Light ?(The Definitive Buying Guide)

What is SMD5630 led strip light ?

5630-LED
5630-LED

SMD5630 led strip light is make by SMD5630 led and surface mounting in a flexible PCB board.

Normally, SMD5630 led strp light have 60led/m,120led/m.DC12V and DC24V available.

And in the market have SMD5730 led strip light.That is almost the same.Only the size 1mm different.This can use the same PCB.

What is the benefits of SMD5630 led strip light?

SMD5630 Led strip light 12v SMD5630 led is 0.5w/pcs and the brightness is 55-60LM pcs. That means the lumen ouput is higher than SMD3528 led ,SMD5050 led.
So we can use SMD5630 led strip light in the place where need higher lumen place.
In another hand,higher power means the heat output also high.We normally request clients using aluminum profile as heat sink.Otherwise ,SMD5630 led strip light will easy damage because of the higher heat.

How to install SMD5630 led strip lignt in our home kitchen?

Now many home are using SMD630 led strip light to lighting.To install a led strip light is easy for us.Here we can find a post in WIKIHOW to know how to install led strip light at home.

Step 1: Measure the length of SMD5630 led strip light you need

measure how is the lenght of SMD5630 led stirp light you needmeasure how is the lenght of SMD5630 led stirp light you need

Step 2:Cut the SMD5630 led strip light the length you need

cut SMD5630 LED STRIP LIGHT

Step 3:Connect SMD5630 led strip light with quick connector

connect SMD5630 LED STRIP LIGHT WITH QUICK CONNECTOR

soldering a cable to the SMD5630 led strip light if you don't have farst connector

solder the cable to the strip light

Step 4:Clean the surface when you are installing your SMD5630 led strip light

clean the surface where you install SMD5630 led strip light

Step 5:Install your SMD5630 led strip light to your chosen surface



connect your SMD5630 led strip light to your chosen surface

Step 6: Connect your SMD5630 led strip light to led power supply via the quickly connector or wire.

connect your SMD5630 led strip light with power supply



What is the different from SMD5630,SMD5050,SMD3528?

We can see the different from the table as below:

SMD5630 vs SMD5050 vs SMD3528 LED

LEDDimensionsChip Surface AreaLumen FluxPower Draw
3528 LED3.5 mm x 2.8 mm9.8 mm²6-8 lumens20-30 mA @ 2.8-3.4 Volts
5050 LED5.0 mm x 5.0 mm25 mm²16-22 lumens60 mA @ 2.8-3.4 Volts
5630 (5730) LED5.6 mm x 3.0 mm16.8 mm²45-50 lumens150 mA @ 2.8-3.4 Volts
