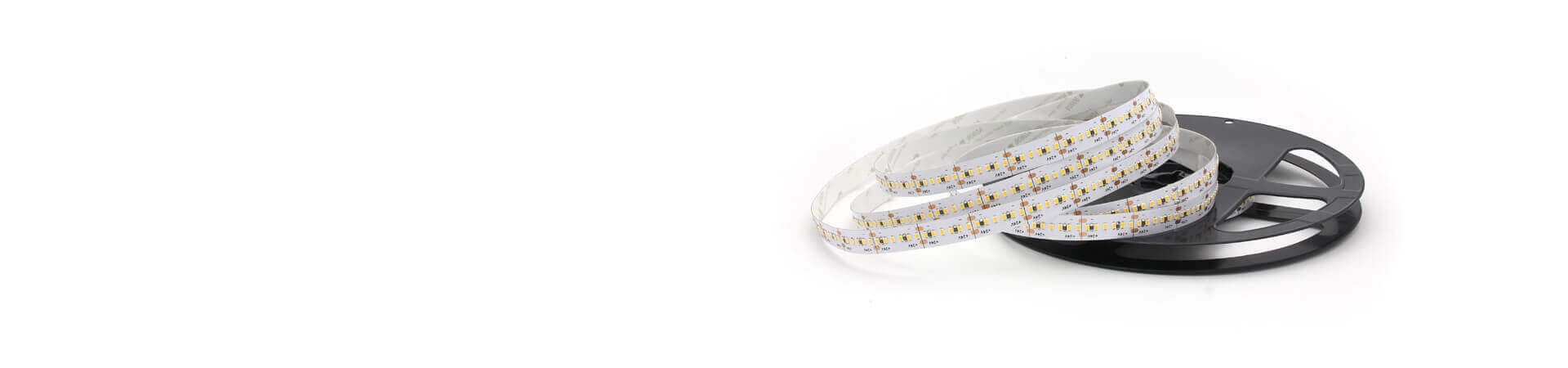

SMD 2216 LED STRIP LIGHTS

2400K,2700K, 3000K, 4500K, 6500K
High Color Rendering Index(CRI>80 CRI>90)
IP33, IP55, IP65, IP67 Waterproof vision
Input DC24V Constant Voltage Version
LED Brand: Epistar 2216 LED
CE ETL ROHS

Specifications

2216 constant voltage LED strip light series Lightstec 2216 LED strip light series is high brightness led strip light. 20ma,20-22lm each led. Ra80 and Ra90 available. DC24V vision. 300led/m high density not dark spot in led aluminum profile. This LED strip light is widely used in hotel, shopping mall, kitchen illumination. The customized length and customized design are warmly welcome.

Model NoLT-2216WW300R-W24
SMD TypeEpistar 2216
Input voltageDC24V
LED Q'ty300LEDs/m
Power/m24W/M
Max current / LED30mA
SMD LED spacing3.33mm
Lumen / m(Max)2000-2400LM
CRI(Ra)>90Ra>80Ra
Minim cuttable length100mm (3LEDs 12V)
50mm (6LEDs 24V)
PCB Width8mm
Energy gradeA
Warranty3years
Working hour30000h
Illumination Angle120°
Working temperture.-20℃~+45℃

Dimensions

2216-300-24

2216 LED Strip Light Accessories

Non-Waterproof  Types Led Strip Light Connector

+ 2pin-Corner- single color connector

2pin-wireless-single-color-connector

L-2pin-Corner-single color connector

T-2pin-Corner-single color connector

2pin-double-head-Connector single color

Female-male-connector

2pin-Wireless-connector n8bb

LED-Strip-Hold-Clips

Waterproof  Types Led Strip Light Connector

2pin-Wireless-connector single color waterproof

2pin-single-head-connector-waterproof

LED-waterproof-DC-connector waterproof

Silicone-clips

How to connect SMD2216 led strip light to power supply?Ultra Guide

When we are using the SMD2216 led strip light ,we need to use a led power supply.

If some of the lighting project need dimming function, we also need to connect to dimmable power supply or dimmable controller.

Here we show you how to connect the strip light to power supply.

how to connect the led strip light with led power supply

how to connect the rgb led strip light with led power supply

how to connect the rgbw led strip light with led controller
